  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, White

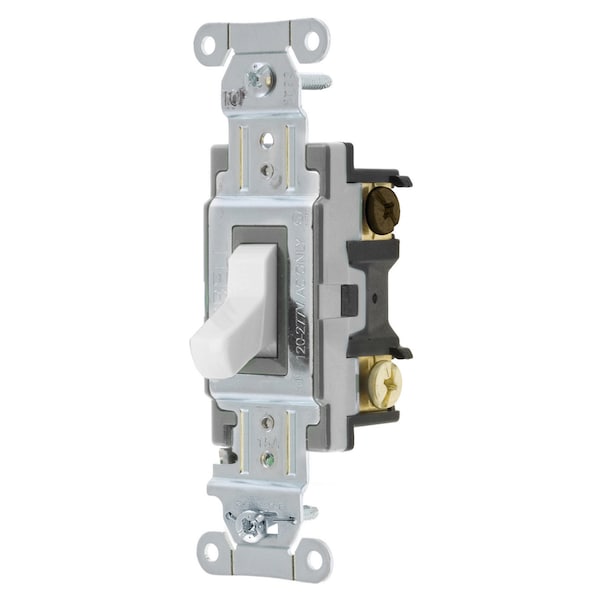

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, White CSB415W - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, White

  • Mfr # CSB415W

  • Zoro # G700701426

product price: $18.79
/ea

Key Features

Switch Type
Four Way
Color
White
Height
1.83 in
Type
Toggle
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB415W
Zoro #
G700701426
UPC #
783585153995
Country of Origin
China

Dimensions

Height
1.83 in
Width
1.49 in
Length
4.18 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Item
Four Way Commercial Toggle Switch
Switch Type
Four Way
Color
White
Type
Toggle
Voltage
120/277V AC
Style
Four Way
Voltage Rating
120-277 VAC
Action
DPDT
Amperage
15 A
Series
General Purpose
Number Of Poles
Double Pole
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Current Rating
15 A
Material
Nylon
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
15A
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Color
White
Product Type
Toggle-switches
Switch Grade
Specification Grade
Switch Handle Positions
2
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Max. Working Voltage
277V AC
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Item Type
Four Way Commercial Toggle Switch
Industry Standard(s)
UL Listed
Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Four Way, 15A 120/277V AC, Back and SideWired, White
