  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Black Toggle

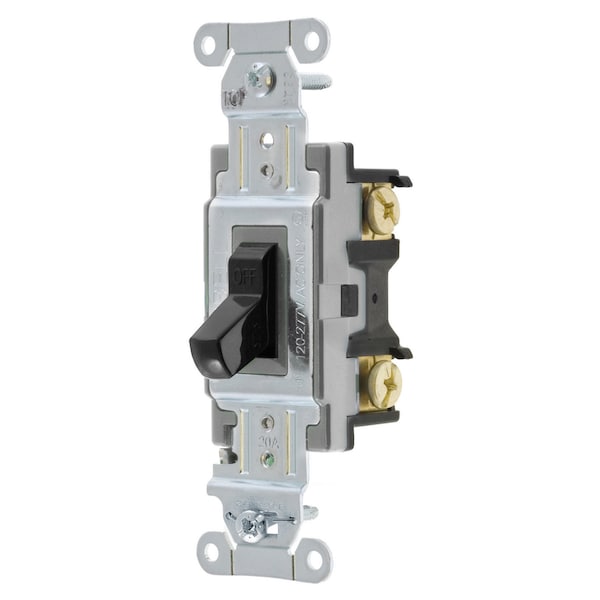

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Black Toggle CS120BK - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired, Black Toggle

  • Mfr # CS120BK

  • Zoro # G400701764

product price: $6.65
/ea
Sold in multiples of 2 for $13.30

Key Features

Color
Black
Length
4.18 in
Style
Single Pole
Width
1.49 in
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS120BK
Zoro #
G400701764
UPC #
783585189178
Country of Origin
China

Dimensions

Length
4.18 in
Width
1.49 in
Height
1.83 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Toggle Switch
Color
Black
Style
Single Pole
Type
Toggle
Material
Nylon
Toggle Color
Black
Base Material
Thermoplastic, Black
Item Type
Single Pole Toggle Switch
Current / Amperage Rating
20 A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Gray
Toggle Material
Nylon
Auto Grounding Mounting Bridge
Zinc Plated Steel
Overload
Minimum 4.8 times rated current for 100 cycles
Industry Standard(s)
UL Listed
Current Rating
20 A
Amperage Rating
20 A
Carton Quantity
10
Max. Continuous Current
20A
Terminal Screws
Brass
Series
General Purpose
Voltage Rating
120-277 VAC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Connectivity
Side Wired Only
Ground Screw
Brass (Green)
Temp. Rise
30°C maximum at rated current
Amperage
20 A
Flammability
UL 94V-2
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current
Contacts
Silver Alloy

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 20A 120/277V AC, Side Wired,Black
