  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Light Almond Toggle

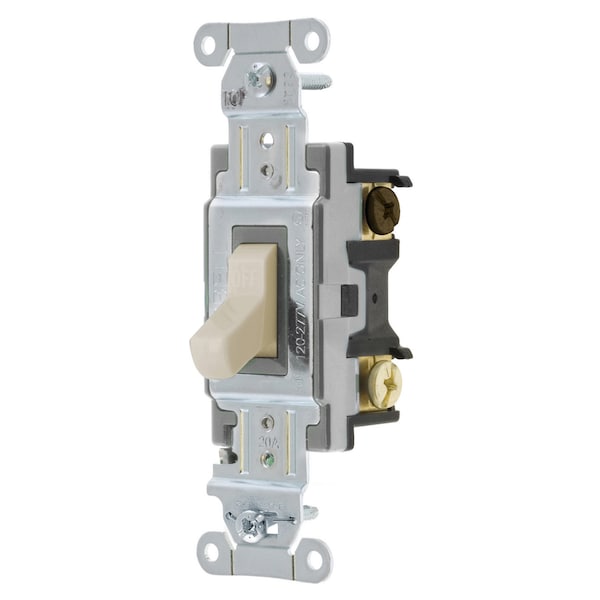

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Light Almond Toggle CS320LA - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Light Almond Toggle

  • Mfr # CS320LA

  • Zoro # G300701758

product price: $8.65
/ea

Key Features

Switch Type
Three Way
Color
Light Almond
Type
Toggle
Length
4.18 in
Height
1.83 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS320LA
Zoro #
G300701758
UPC #
783585151236
Country of Origin
China

Dimensions

Length
4.18 in
Height
1.83 in
Width
1.49 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Three Way Toggle Switch
Switch Type
Three Way
Color
Light Almond
Type
Toggle
Style
Three Way
Voltage
120/277V AC
Number Of Poles
Single Pole
Action
SPDT
Current Rating
20 A
Series
General Purpose
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
20 A
Connectivity
Side Wired Only
Temp. Rise
30°C maximum at rated current
Voltage Rating
120-277 VAC
Material
Nylon
Switch Handle Positions
2
Wiring Style
Side Wired Only
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Specification Grade
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Light Almond
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
20 A
Amperage Rating
20 A
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Three Way Toggle Switch

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, LightAlmond
