  9. Triple Connctr, Red, Taper Nose, Ser 16

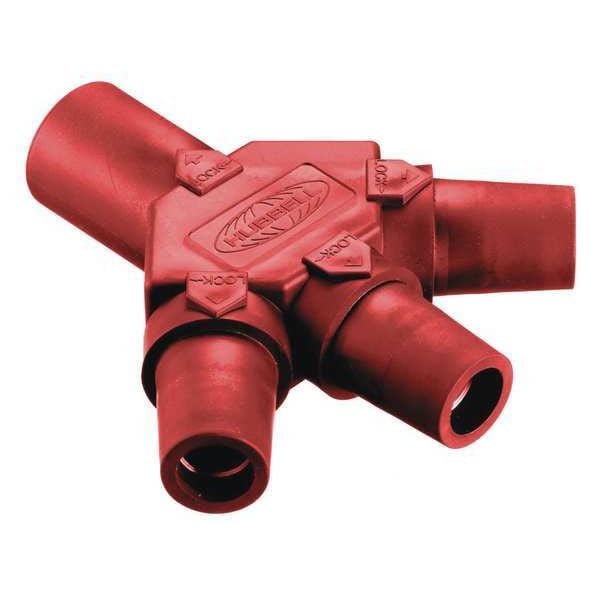

Hubbell Wiring Device-Kellems Triple Connctr, Red, Taper Nose, Ser 16 HBLM3FR - main

Triple Connctr, Red, Taper Nose, Ser 16

  • Mfr # HBLM3FR

  • Zoro # G7122412

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLM3FR
Zoro #
G7122412
UPC #
783585112800
Country of Origin
China

Dimensions

Overall Height
5.88 in
Overall Length
5.78 in
Overall Width
1.48 in

Details

Item
Triple Connector
Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Material
Thermoplastic Elastomer
Color
Red
Fits
UL1691
Amps AC/DC
300/400AC/DC
Standards
cUL, UL
Product Type
3-Fer
Housing Color
Red
Contact Material
Brass
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
16
Gender Configuration
Male-Female-Female-Female
Maximum Operating Temperature
75 Degrees C
NEMA Enclosure Rating
12, 3R, 4X
Industry Standard(s)
UL 498 And UL1691
Item Type
Tri-Taps
Current / Amperage Rating
400 A
Voltage Rating Description
600V AC/DC
Number Of Pins
1) In, 3) Out- Male-Female-Female-Female
Insulation
Insulated Body
Style
3-Fer Male-Female-Female-Female
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Application
High Ampacity
Wattage
360000

Description

The HUBBELL Triple Connector, Series 16, is a single pole device intended for temporary electrical power distribution. This tri-tap connector features a male-female-female-female (M-FFF) configuration and is constructed with an insulated thermoplastic elastomer housing and brass contacts. It rated for operation with AC or DC applications up to 400 amps and is compliant with UL1691 standards.


Key Features of the HUBBELL Triple Connector - Series 16:

  • Amperage Rating: Rated for up to 400 A (AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Configuration: Male-Female-Female-Female (Tri-Tap/3-Fer)

  • Material: Brass conductor/contact; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Complies with NEMA 12, 3R, and 4X requirements

  • Operating Temperature Range: -40°C minimum to +75°C maximum continuous use

  • Industry Standards: Complies with UL498, UL1691, cUL listed

  • Series Compatibility: Designed for use with Series 16 devices
