  6. USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, White

This item is Discontinued.

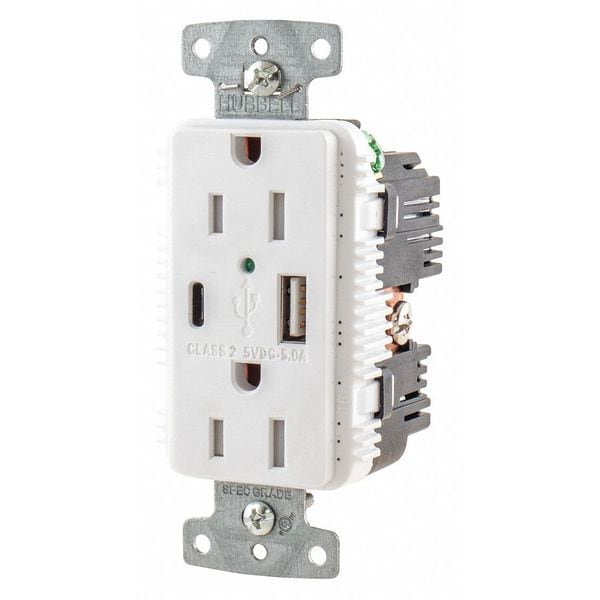

Hubbell Wiring Device-Kellems USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, White USB15AC5W

USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, White (Discontinued)

  • Mfr # USB15AC5W
  • Zoro # G5843411
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
USB15AC5W
Zoro #
G5843411
UPC #
00883778307171
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.8 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.28 in

Details

Item
USB Charger Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
15
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Number of Poles
2
Number of Wires
3
Power Indicator
Yes
USB Charging Capacity
5.0 A @ 5V DC
Tamper Resistance
Yes
Amps - Plugs and Receptacles
15
Standards
cULus
Phase
Single
Number of USB Ports
2
USB Connector
Type A and C
HP
1/2 hp
Material of Construction
Nylon
Item - Plugs and Receptacles
USB Charger Receptacle
NEMA Configuration
5-15
Color
White
Wiring Method
Back, Side
Contact Material
Plated Steel
UL 94 Flammability Rating
V-2
Market
Commercial
Resistance Properties
Tamper Resistant
NEMA Receptacle Configuration
5-15R
Power Indicating Light
Yes
Voltage Rating
125V AC
Electrical Connection Type
Straight Blade
Wire Connection Types
Screw Terminals
Housing Material
RTP
Wire Connection Type
Screw Terminals
Current Rating
15 A
Mount Type
Flush
Minimum Operating Temperature
-40 Degrees F
Housing Color
White
Horsepower Rating
1/2 hp
Receptacle Type
Duplex
Number of Outlets
2
Maximum Operating Temperature
167 Degrees F
Grounding
Grounded
USB Connection Type
A, C
Grade
Commercial
Nema Rating
5-15R
Style
Style Line Decorator
Series
Heavy Duty
Voltage Rating Description
125 V
Current / Amperage Rating
15 A
Type
One Type A, One Type-C Port

Description

USB Charger Receptacle, Current Rating 15 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Grade Commercial, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material RTP, Maximum Wire Size 10 AWG
