  11. USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White

This item is Discontinued.

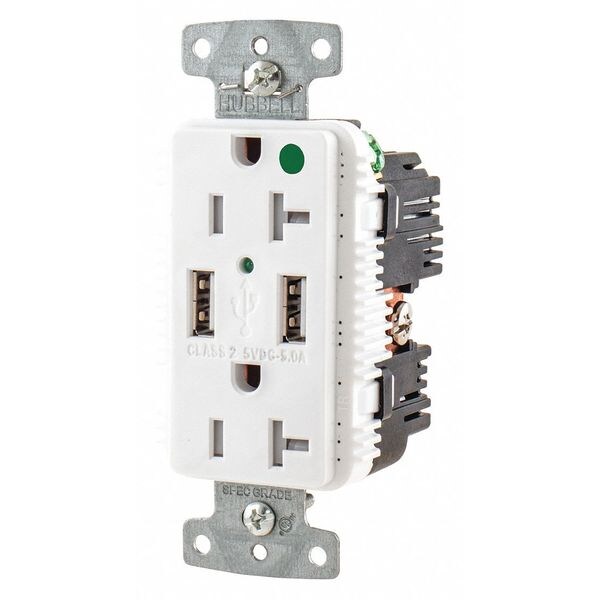

Hubbell Wiring Device-Kellems USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White USB8300A5W

USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White (Discontinued)

  • Mfr # USB8300A5W
  • Zoro # G3953509
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
USB8300A5W
Zoro #
G3953509
UPC #
00883778307102
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.8 in
Mount Hole Center-to-Center Height
3.28 in
Minimum Wire Size
14 AWG

Details

Item
USB Charger Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Number of Poles
2
Number of Wires
3
Power Indicator
Yes
USB Charging Capacity
5.0 A @ 5V DC
Standards
cULus
USB Connector
Type A
Item - Plugs and Receptacles
USB Charger Receptacle
Tamper Resistance
Yes
Material of Construction
Nylon
HP
1 hp
Number of USB Ports
2
Phase
Single
Color
White
Wiring Method
Back, Side
Horsepower Rating
1 hp
Current Rating
20 A
Grade
Hospital Grade
Electrical Connection Type
Straight Blade
Maximum Operating Temperature
167 Degrees F
Power Indicating Light
Yes
UL 94 Flammability Rating
V-2
USB Connection Type
A
Resistance Properties
Tamper Resistant
Number of Outlets
2
Voltage Rating
125V AC
Grounding
Grounded
Housing Material
RTP
Minimum Operating Temperature
-40 Degrees F
NEMA Receptacle Configuration
5-20R
Mount Type
Flush
Housing Color
White
Contact Material
Plated Steel
Receptacle Type
Duplex
Wire Connection Type
Screw Terminals
Style
Style Line Decorator
Current / Amperage Rating
20 A
Series
Hospital Grade
Type
Two Type A Port
Voltage Rating Description
125 V
Nema Rating
5-20R

Description

USB Charger Receptacle, Current Rating 20 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp, Housing Material RTP, Maximum Wire Size 10 AWG
