  11. USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White

This item is Discontinued.

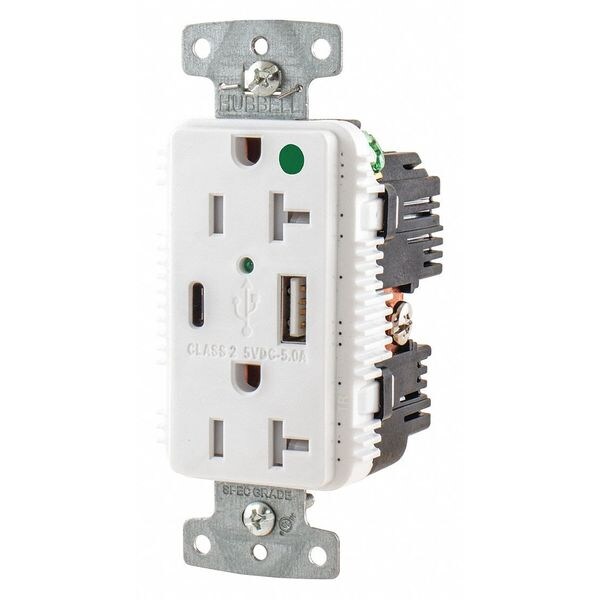

Hubbell Wiring Device-Kellems USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White USB8300AC5W

USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White (Discontinued)

  • Mfr # USB8300AC5W
  • Zoro # G5890530
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
USB8300AC5W
Zoro #
G5890530
UPC #
00883778307386
Country of Origin
China

Dimensions

Overall Depth
1.8 in
Mount Hole Center-to-Center Height
3.28 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
USB Charger Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Number of Poles
2
Number of Wires
3
Power Indicator
Yes
USB Charging Capacity
5.0 A @ 5V DC
Number of USB Ports
2
Tamper Resistance
Yes
Material of Construction
Nylon
HP
1 hp
USB Connector
Type A and C
Phase
Single
Item - Plugs and Receptacles
USB Charger Receptacle
Standards
cULus
Wiring Method
Back, Side
NEMA Configuration
5-20
Color
White
Grade
Hospital Grade
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
NEMA Receptacle Configuration
5-20R
Housing Color
White
Voltage Rating
125V AC
Number of Outlets
2
Horsepower Rating
1 hp
USB Connection Type
A, C
Mount Type
Flush
Contact Material
Plated Steel
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex
Wire Connection Types
Screw Terminals
Current Rating
20 A
Power Indicating Light
Yes
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Housing Material
RTP
Electrical Connection Type
Straight Blade
Grounding
Grounded
Voltage Rating Description
125 V
Current / Amperage Rating
20 A
Type
One Type A, One Type-C Port
Nema Rating
5-20R
Style
Style Line Decorator
Series
Hospital Grade

Description

USB Charger Receptacle, Current Rating 20 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp, Housing Material RTP, Maximum Wire Size 10 AWG
