  11. Vacancy Sensor, PIR, 1200 sq ft, Ivory
Hubbell Wiring Device-Kellems Vacancy Sensor, PIR, 1200 sq ft, Ivory WS1001NI - main

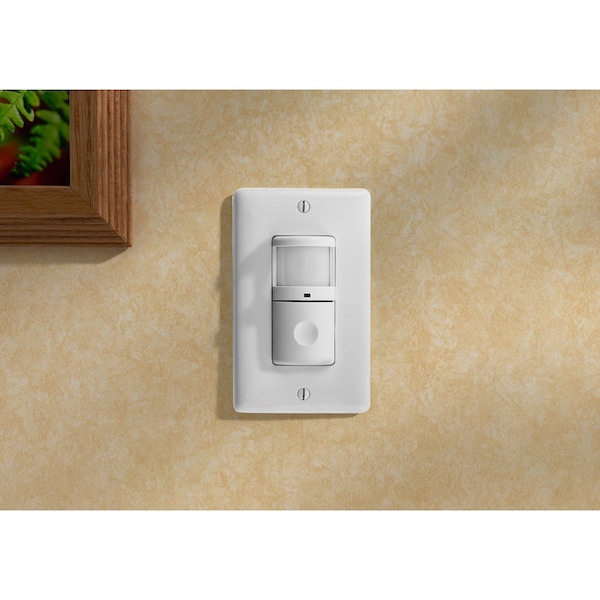

Vacancy Sensor, PIR, 1200 sq ft, Ivory

  • Mfr # WS1001NI

  • Zoro # G5238554

product price: $44.89
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
1,200 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS1001NI
Zoro #
G5238554
UPC #
783585256276
Country of Origin
Taiwan, Province of China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Maximum Mounting Height
54 in
Overall Depth
4.15 in
Overall Height
1.62 in
Overall Width
1.82 in
Minimum Mounting Height
42 in
Mounting Height
42 to 54 inches above floor
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Item
Vacancy Sensor with Nightlight
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
20 sec to 30 min
Time Delay Adjustment Method - Motion Sensor
Manual
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, LED
Timer Range
20 sec. to 30 min.
Voltage
120V AC
Standards
cULus Listed to UL773A
Color
Ivory
Watts @ 120V
500
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Time Delay
Manual
Installation Type
Wall
Includes
Night Light, Nylon Wall Plate
Description/Special Features
Night Light, Manual-On Operation, Tamper Resistant Lens
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Viewing Angle
180 Degrees
Item - Motion Sensing and Dimming
Vacancy Sensor with Nightlight
Sensor Type
Passive Infrared
Coverage
1200 sq. ft.
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Included
Dimming Method
No Dimming
Sensor Operation
Vacancy
Minimum Operating Temperature
32 Degrees F
Time Delay Adjustment Method
Manual
Neutral Required
No
Load Rating @ 120V AC
600W (Incandescent)
Includes Wall Plate
Wall Plate Included
Maximum Time Delay
30 min
Fan Rated
No
Illuminated
Yes
Dimming Type
No Dimming
Includes Motion Sensor
Yes
Series
H-Moss
Installation Location
Wall
Coverage Angle
180 Degrees
Maximum Coverage Area
1,200 sq ft
Horsepower Rating
3/16 hp
Minimum Time Delay
20 sec
Manufacturer Warranty
5 yr
Nightlight
Yes
Maximum Operating Temperature
122 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Number of Buttons
1
Load Rating @ 277V AC
1,000W (Incandescent)
Snap-On Wallplate
RCW1I
Lens
Polyethylene
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Mounting Strap
Steel
Housing
Flame retardant UL 94 V-0 ABS
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Front Press Switch
ON/OFF
Service Switch
OFF (service); ON (normal operation)
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
SS Wallplate
SS26
Passive Infrared
Red LED
Operating Voltage
120V AC

Description

Vacancy Sensor with Nightlight, Number of Buttons 1, Sensor Operation Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 600W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color Ivory, Nightlight Yes, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
