  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED

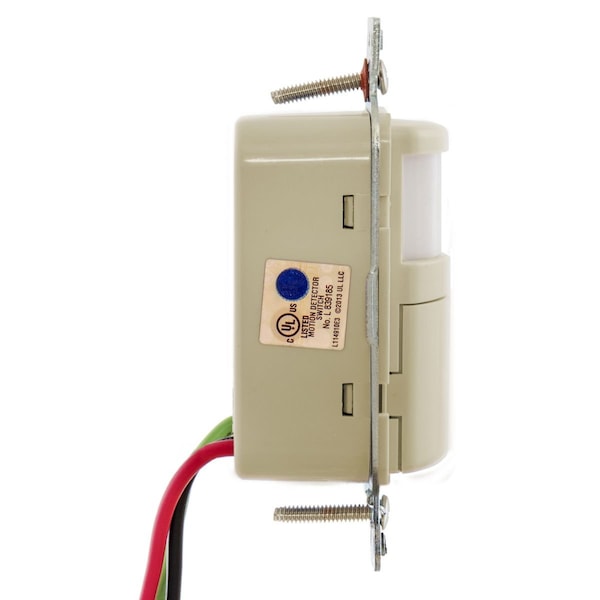

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED WS1000NI - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED

  • Mfr # WS1000NI

  • Zoro # G5257996

product price: $55.65
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS1000NI
Zoro #
G5257996
UPC #
783585256238
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
4.15 in
Maximum Mounting Height
54 in
Overall Height
1.62 in
Overall Width
1.82 in
Minimum Mounting Height
42 in
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Coverage Angle - Motion Sensor
180 Degrees
Time Delay
Manual
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Watts @ 120V
500/1000
Includes
Night Light, Nylon Wall Plate
Description/Special Features
Night light, Auto-On Operation, Tamper Resistant Lens
Color
Ivory
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Item
Occupancy Sensor
Standards
cULus Listed to UL773A
Lighting Technology
Fluorescent, LED
Communication Method
Hard Wired
Number of Gangs
1
Illuminated
Yes
Series
H-Moss
Includes Wall Plate
Wall Plate Included
Fan Rated
No
Horsepower Rating
3/16 hp
Includes Dimming Switch
Dimming Switch Not Included
Maximum Time Delay
30 min
Maximum Coverage Area
1,200 sq ft
Minimum Time Delay
20 sec
Includes Motion Sensor
Yes
Installation Location
Wall Mount
Manufacturer Warranty
5 yr
Coverage Angle
180 Degrees
Nightlight
Yes
Sensor Operation
Occupancy, Vacancy
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Number of Buttons
1
Load Rating @ 120V AC
600W, Incandescent
Time Delay Adjustment Method
Manual
Neutral Required
No
Snap-On Wallplate
RCW1I
Mounting Strap
Steel
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Passive Infrared
Red LED
SS Wallplate
SS26
Housing
Flame retardant UL 94 V-0 ABS
Front Press Switch
ON/OFF
Service Switch
OFF (service); ON (normal operation)
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Lens
Polyethylene
Operating Voltage
120V AC

Description

Occupancy Sensor with Nightlight, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 600W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color Ivory, Nightlight Yes, Dimming Method No Dimming, Dimming Type No Dimming
