  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,200 sq ft, Fluorescent, LED

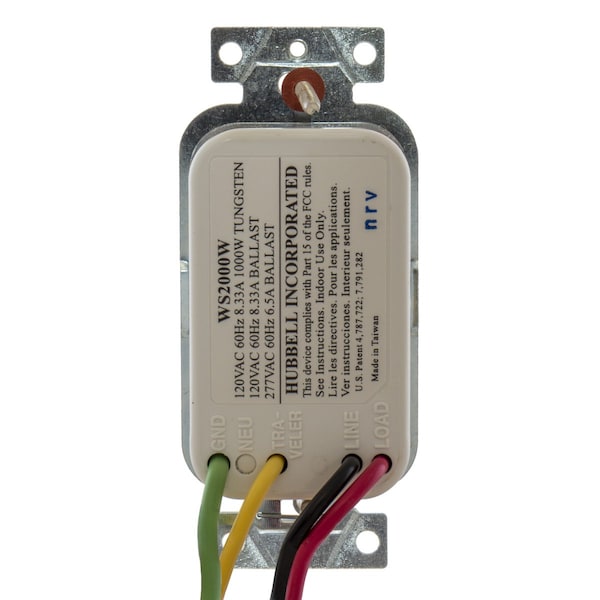

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,200 sq ft, Fluorescent, LED WS2000W - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,200 sq ft, Fluorescent, LED

  • Mfr # WS2000W

  • Zoro # G5238536

product price: $72.69
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Coverage at Suggested Mounting Height
1,200 sq ft
Time Delay - Motion Sensor
20 sec to 30 min
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS2000W
Zoro #
G5238536
UPC #
783585256290
Country of Origin
Taiwan, Province of China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Minimum Mounting Height
42 in
Overall Depth
4.15 in
Overall Height
1.62 in
Overall Width
1.82 in
Maximum Mounting Height
54 in
Mounting Height
42 to 54 inches above floor
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Item
Occupancy Sensor
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Watts @ 120V
1000
Watts @ 277V
1800
Sensor Type
Passive Infrared
Time Delay
Manual
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Standards
cULus Listed to UL773A
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Description/Special Features
3-Way Capable, Selectable Manual/Auto-On Operation, Tamper Resistant Lens
Includes
Nylon Wall Plate, Photocell
Color
White
Lighting Technology
Fluorescent, LED
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Communication Method
Hard Wired
Number of Gangs
1
Load Rating @ 120V AC
1,000W (Incandescent)
Minimum Operating Temperature
32 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Includes Wall Plate
Wall Plate Included
Maximum Coverage Area
1,200 sq ft
Maximum Operating Temperature
122 Degrees F
Minimum Time Delay
20 sec
Neutral Required
No
Nightlight
No
Sensor Operation
Occupancy, Vacancy
Horsepower Rating
3/16 hp
Number of Buttons
1
Installation Location
Wall
Includes Motion Sensor
Yes
Coverage Angle
180 Degrees
Time Delay Adjustment Method
Manual
Manufacturer Warranty
5 yr
Fan Rated
No
Dimming Type
No Dimming
Maximum Time Delay
30 min
Load Rating @ 277V AC
1,000W (Incandescent)
Series
H-Moss
Service Switch
OFF (service); vacancy (manual-ON); occupancy (auto-ON)
Ambient Light
Photocell, 10 to 500 foot candles
Passive Infrared
Red LED
Housing
Flame retardant UL 94 V-0 ABS
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Snap-On Wallplate
RCW1W
SS Wallplate
SS26
Mounting Strap
Steel
Lens
Polyethylene
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,000W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
