  11. Wall Plates, Number of Gangs: 1 Thermoplastic, Light Texture Finish, Gray

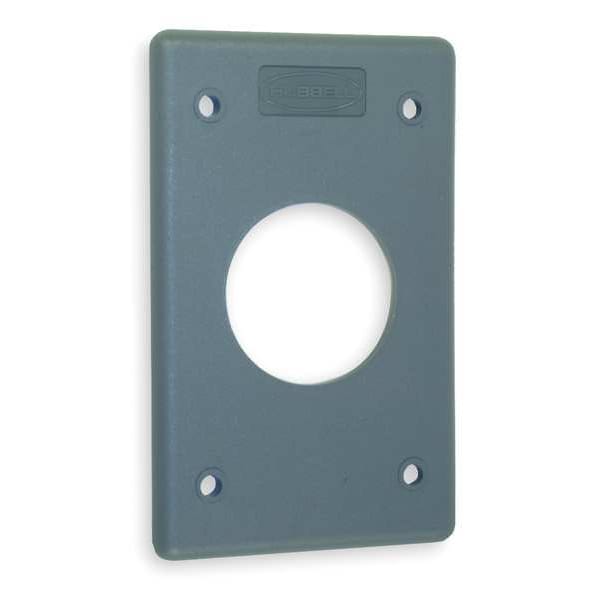

Hubbell Wiring Device-Kellems Wall Plates, Number of Gangs: 1 Thermoplastic, Light Texture Finish, Gray HBLP720FS - main

Wall Plates, Number of Gangs: 1 Thermoplastic, Light Texture Finish, Gray

  • Mfr # HBLP720FS

  • Zoro # G3001941

product price: $8.35
/ea

Key Features

Number of Gangs
1
Color
Gray
Material
Thermoplastic
Size
Standard
Finish
Light Texture
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLP720FS
Zoro #
G3001941
UPC #
783585318158
Country of Origin
United States

Dimensions

Size
Standard
Circular Outlet Diameter
1.6 in
Overall Height
0.2 in
Plate Size
Standard
Display Size
1-Gang

Details

Number of Gangs
1
Item
Wall Plates
Color
Gray
Material
Thermoplastic
Finish
Light Texture
Weather Resistant
No
Tamper Resistant
No
Description/Special Features
UV Stabilized
Standards
CSA C22.2 No. 0.4, CSA C22.2 No. 94 Enclosures Types 1 3R, CSA Certified C22.2 No. 18, UL 467, UL 514C, UL Listed 50 Enclosures Types 1 3R
Type
Cover Plate
Resistance Properties
Corrosion Resistant, Impact Resistant
UL 94 Flammability Rating
V-0
For Use With
Portable Outlet Box
Number of Switch Openings
0
Wall Plate Type
Single Circular Opening
Material Type
Non-Metallic
Shape
Rectangular
Number of Outlet Openings
1
Mount Type
Box
Listings and Certifications
UL514C, UL467 and UL50 Enclosures Types 1, 3R. CSA C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No.0.4 (Impedance).
POB Style
1.60" Opening Non-Metallic FS Cover Plate
Outdoor Cover Plate Screw Material
Stainless Steel
Operating Temperatures
80 ° C Maximum; -35 ° C Minimum.
Impact and Crush Resistance
In accordance with UL 514C, UL50, C22.2 N0. 18 and C22.2 No. 94
Cover Plate Gasket Material
UL Closed-Cell Foam (aging and oil resistant).
Moisture Resistance
Wet and Damp locations, Enclosure Type 3R when used with weatherproof cover plates. Dry, indoor locations, Enclosure Type 1 with all other cover plates.
Portable Outlet Box
Portable Outlet Box Plates
Indoor Cover Plate Screw Material
Zinc Plated Steel
Flammability
UL 94V0, 94-5VA classification.
UV Resistance
All materials are UV Stabilized.
Style
Non-Metallic Fs Cover Plate
Application
1.60" Opening
Performance
Environmental - Flammability - UL 94V-0, 94-5VA classification Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94. Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates Environmental - Operating Temperature - 80°C maximum -35°C minimum Environmental - UV Resistance - All materials are UV stabilized
Knockouts
None
Item Type
Weatherproofing Covers
Material - Mounting Hardware
Box Mount- Mounting Screws
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
.38" - .75"
Construction
Molded
Industry Standard(s)
C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4 UL 514C, UL467 and UL50 Enclosures Types 1, 3R
Number Of Outlets
1-Device

Description

Wall Plate, Color Gray, Material PBT, Number of Gangs 1, Plate Size Standard, Resistance Properties Corrosion Resistant, Impact Resistant, Circular Outlet Diameter 1.56 in, Combination Type Not Applicable, Finish Textured, Mount Hole Center-to-Center Height 3.28 in, Number of Outlet Openings 1, Number of Switch Openings 0, Number of USB Openings 0, Outlet Orientation Vertical, Overall Height 0.2 in
