  11. Wall Switch, 1-Pole, Wiring Module, 20A, Gry

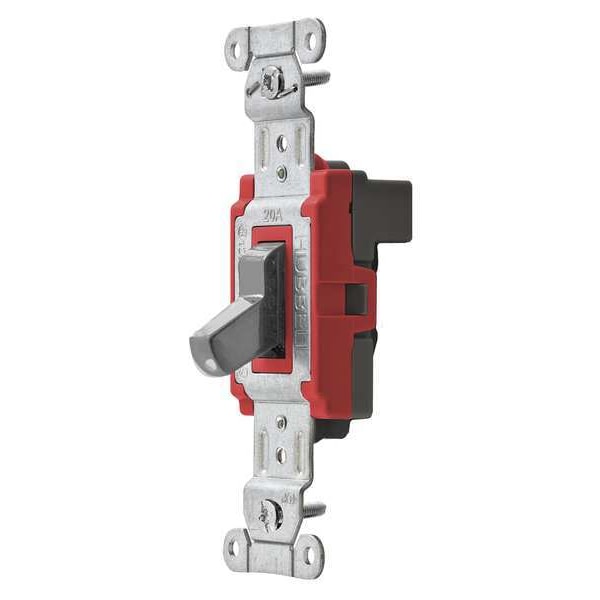

Hubbell Wiring Device-Kellems Wall Switch, 1-Pole, Wiring Module, 20A, Gry SNAP1221GY - main

Wall Switch, 1-Pole, Wiring Module, 20A, Gry

  • Mfr # SNAP1221GY

  • Zoro # G4568891

product price: $11.15
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221GY
Zoro #
G4568891
UPC #
783585189345
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Height
1.74 in
Length
4.18 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Rated HP
1 to 2
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Maximum Operating Temperature
75 Degrees C
Grounding
Grounded
Housing Material
Thermoplastic
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Impact Resistant
Number of Switches
1
Current Rating
20 A
Voltage Rating
120/277V AC
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Market
Industrial
Wire Connection Type
Modular Wiring
Style
Single Pole
Type
Toggle
Overload
Minimum 4.8 times rated current for 100 cycles
Contacts
Silver Alloy
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
Uses SNAPConnect Connector
Top Material
Thermoplastic, Red
Toggle Color
Gray
Base Material
Thermoplastic, Black
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminals
Brass
Max. Continuous Current
20A
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Toggle Material
Thermoplastic
Voltage Rating Description
120-277 VAC
Series
General Purpose
Temperature Rise - Max.
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Industry Standard(s)
UL Listed
Number Of Poles
Single Pole
Material
Thermoplastic
Item Type
Single Pole Toggle Switch

Description

Wall Switch, Color Gray, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
