  11. Wall Switch, 120/277V, 15A, 3-Position

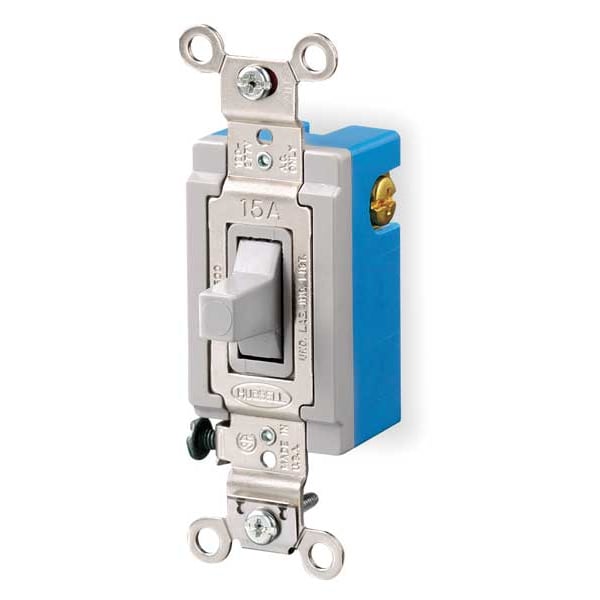

Hubbell Wiring Device-Kellems Wall Switch, 120/277V, 15A, 3-Position HBL1556GY - main

Wall Switch, 120/277V, 15A, 3-Position

  • Mfr # HBL1556GY

  • Zoro # G1720966

product price: $42.19
/ea

Key Features

Switch Type
Single Pole/Double Throw
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1556GY
Zoro #
G1720966
UPC #
783585432762
Country of Origin
China

Dimensions

Overall Height
1.9 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Height
1.89 in
Width
1.31 in
Length
4.06 in
Dimensions
4.06 in x 1.31 in x 1.89 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole/Double Throw
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Momentary
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1/2
Antimicrobial
No
Standards
UL Listed
Voltage
120/277V AC
Number of Switches
1
Switch Material
Nylon
Horsepower Rating
1/2 hp
Market
Industrial
Wire Connection Type
Screw Terminals
Current Rating
15 A
Maximum Operating Temperature
75 Degrees C
Voltage Rating
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Style
Single Pole Double Throw
Type
Toggle
Nylon Wall Plate
NP1GY
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Toggle Color
Gray
Max. Continuous Current
15A
Listing and Certifications
UL Listed and CSA Certified
Flammability
UL 94V-2
Switch Handle Positions
3
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Amperage
15A
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Switch Grade
Industrial
Product Type
Toggle-switches
Overload
Minimum 4.8 times rated current for 100 cycles
Action
SPDT
Series
Extra Heavy Duty
Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Connectivity
Back and Side Wired
Application
Back and Side Wired
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Contact Configuration
Momentary
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Current / Amperage Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Momentary, Switch Type Single Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
