  11. Wall Switch, 3-Way, 120/277V, 15A, Brn, Toggl

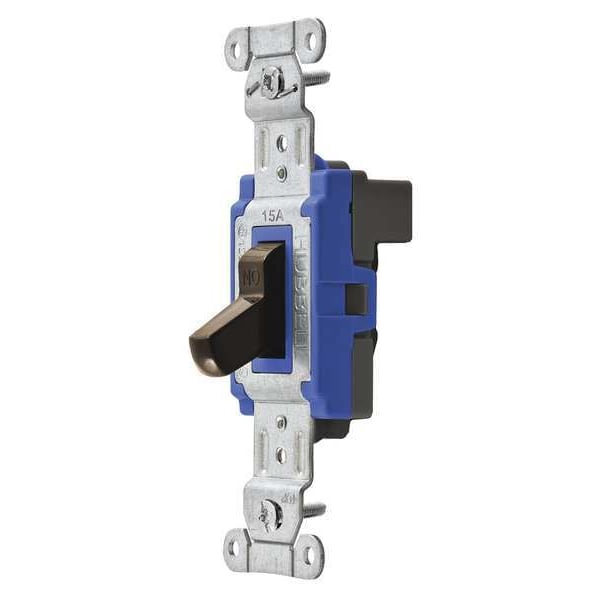

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 15A, Brn, Toggl SNAP1203BR - main

Wall Switch, 3-Way, 120/277V, 15A, Brn, Toggl

  • Mfr # SNAP1203BR

  • Zoro # G4628504

product price: $11.15
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1203BR
Zoro #
G4628504
UPC #
783585186580
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Height
1.74 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Rated HP
1/2 to 2
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Standards
UL Listed
Antimicrobial
No
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Resistance Properties
Impact Resistant
Wire Connection Type
Modular Wiring
Voltage Rating
120/277V AC
Number of Switches
1
Market
Industrial
Grounding
Grounded
Housing Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Current Rating
15 A
Type
Toggle
Style
Three Way
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Terminals
Brass
Flammability
UL 94V-2
Base Material
Thermoplastic, Black
Max. Continuous Current
15A
Toggle Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Top Material
Thermoplastic, Blue
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Color
Brown
Terminal Accommodations
Uses SNAPConnect Connector
Material
Thermoplastic
Number Of Poles
Single Pole
Voltage Rating Description
120-277 VAC
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Industry Standard(s)
UL Listed
Current / Amperage Rating
15 A
Item Type
Three Way Toggle Switch
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
15 A
Action
SPDT
Series
General Purpose

Description

Wall Switch, Color Brown, Current Rating 15 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
