  11. Wall Switch, 3-Way, 120/277V, 20A, Brn, Toggl

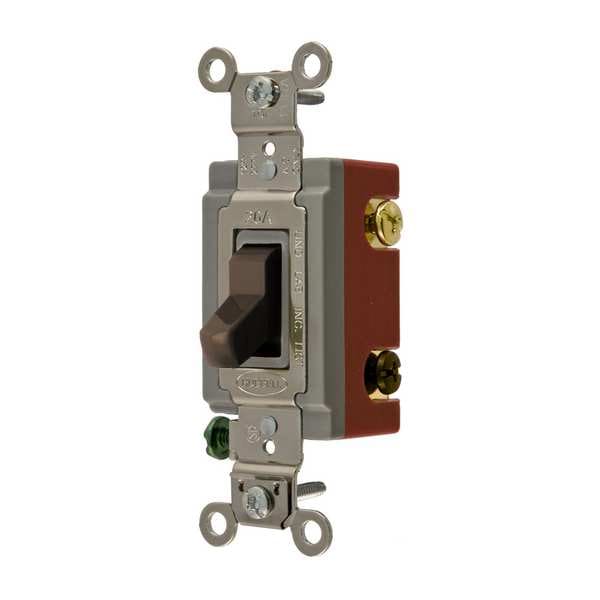

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 20A, Brn, Toggl HBL1223 - main

Wall Switch, 3-Way, 120/277V, 20A, Brn, Toggl

  • Mfr # HBL1223

  • Zoro # G0472333

product price: $30.51
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1223
Zoro #
G0472333
UPC #
783585431765
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.9 in
Overall Width
1.3 in
Maximum Wire Size
10 AWG
Width
1.31 in
Length
4.06 in
Height
1.87 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Rated HP
1
Standards
UL Listed
Voltage
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Maximum Operating Temperature
75 Degrees C
Current Rating
20 A
Market
Industrial
Wire Connection Type
Screw Terminals
Switch Material
Nylon
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Horsepower Rating
1 hp
Number of Switches
1
Style
Three Way
Type
Toggle
Max. Continuous Current
20A
Switch Grade
Industrial
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Handle Positions
2
Amperage
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Toggle Color
Brown
Product Type
Toggle-switches
Wiring Style
Back and Side Wired
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Amperage Rating
20 A
Current / Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Application
Back and Side Wired
Connectivity
Back and Side Wired
Voltage Rating Description
120-277 VAC
Action
SPDT
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Number Of Poles
Single Pole

Description

Wall Switch, Color Brown, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
