Shop HUBBELL WIRING DEVICE-KELLEMS

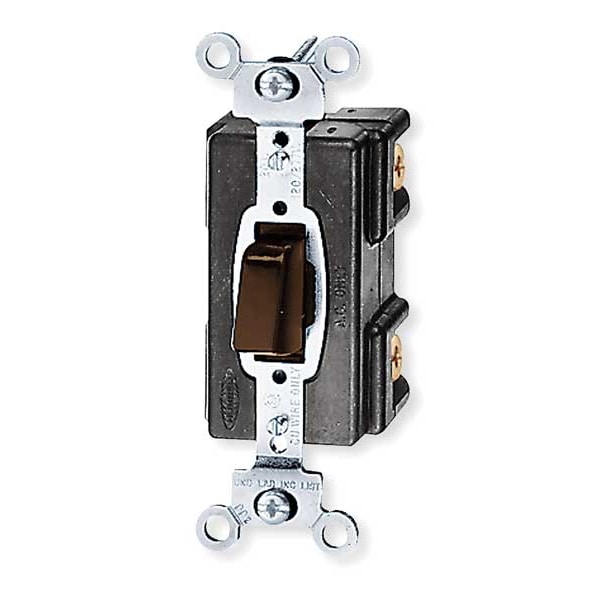

Wall Switch, 3-Way, Side, 120/277V, 20A, Brn

  • Mfr # HBL1283

  • Zoro # G1069415

product price:  $48.29
/ea

Key Features

Switch Type
3-Way
Switch Style
Push Button
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1283
Zoro #
G1069415
UPC #
783585016870
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.5 in
Maximum Wire Size
10 AWG
Overall Width
1.5 in
Length
3.28 in
Width
1.5 in
Height
1.45 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.5 in x 1.45 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Push Button
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Side
Application Environment
Commercial
Rated HP
1
Antimicrobial
No
Standards
UL Listed
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Market
Industrial
Resistance Properties
Impact Resistant
Wire Connection Type
Screw Terminals
Voltage Rating
120/277V AC
Maximum Operating Temperature
167 Degrees F
Number of Switches
1
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Style
Three Way
Toggle Color
Brown
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Product Type
AC Special Purpose Switches
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Actuator Type
Press
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Rating
20A 120/277V
Max. Continuous Current
20A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating
20 A
Connectivity
Side Wired Only
Number Of Poles
Single Pole
Item Type
Three Way Toggle Switch
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Action
SPDT
Temperature Rise - Max.
30°C maximum at rated current
Series
General Purpose
Voltage Rating Description
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Grounding
Grounded
Illuminated
No
Nightlight
No

Description

Wall Switch, Color Brown, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Push Button, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
