  11. Wall Switch, 4-Way, 120/277V, 15A, Gry, Toggl
This item is Discontinued.

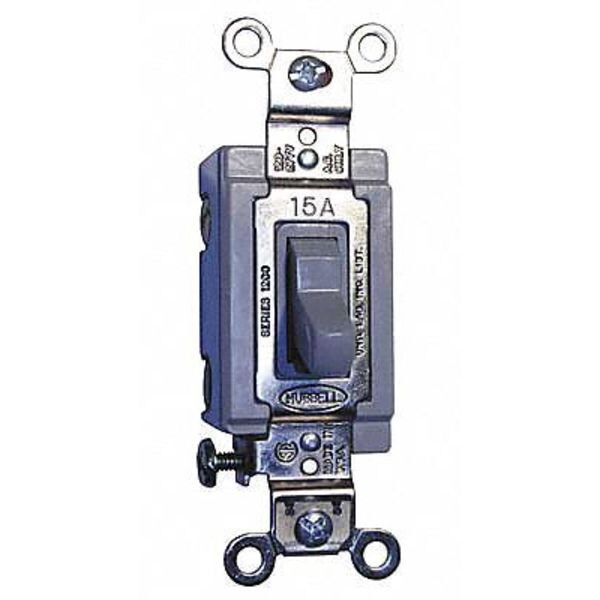

Hubbell Wiring Device-Kellems Wall Switch, 4-Way, 120/277V, 15A, Gry, Toggl HBL1204GY

Wall Switch, 4-Way, 120/277V, 15A, Gry, Toggl (Discontinued)

  • Mfr # HBL1204GY
  • Zoro # G2880911
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1204GY
Zoro #
G2880911
UPC #
783585430362
Country of Origin
China

Dimensions

Overall Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Height
1.9 in
Height
1.87 in
Width
1.31 in
Length
4.06 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
4-Way
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Rated HP
1/2
Antimicrobial
No
Voltage
120/277V AC
Current Rating
15 A
Horsepower Rating
1/2 hp
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Voltage Rating
120/277V AC
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Switch Material
Nylon
Wire Connection Type
Screw Terminals
Number of Switches
1
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Style
Four Way
Type
Toggle
Overload
Minimum 4.8 times rated current for 100 cycles
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2
Max. Continuous Current
15A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Amperage
15A
Product Type
Toggle-switches
Wiring Style
Back and Side Wired
Max. Working Voltage
277V AC
Switch Grade
Industrial
Toggle Color
Gray
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Action
DPDT
Temperature Rise - Max.
30°C maximum at rated current
Application
Back and Side Wired
Series
Extra Heavy Duty
Industry Standard(s)
UL Listed
Current / Amperage Rating
15 A
Number Of Poles
Double Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating Description
120-277 VAC
Amperage Rating
15 A
Connectivity
Back and Side Wired

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
