  11. Wall Switch, Gray, 3-Way Type, 1 to 2 HP

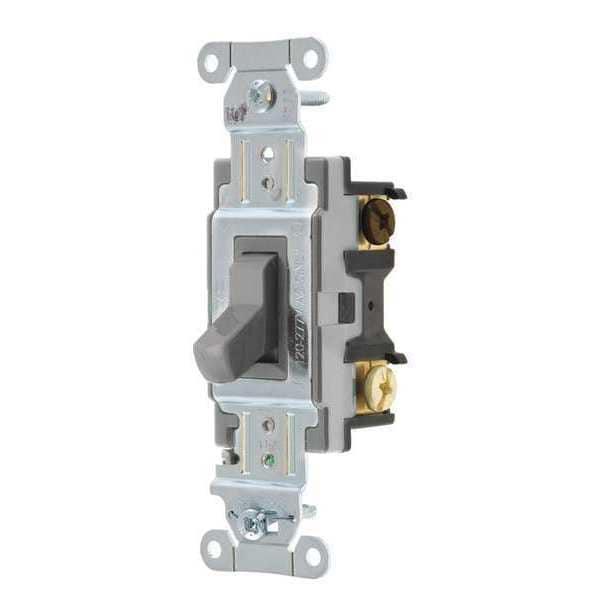

Hubbell Wiring Device-Kellems Wall Switch, Gray, 3-Way Type, 1 to 2 HP CSB315GY - main

Wall Switch, Gray, 3-Way Type, 1 to 2 HP

  • Mfr # CSB315GY

  • Zoro # G4844220

product price: $8.69
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB315GY
Zoro #
G4844220
UPC #
-
Country of Origin
China

Dimensions

Overall Width
1.5 in
Overall Height
1.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Width
1.49 in
Length
4.18 in
Height
1.83 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Standards
UL Listed
Rated HP
1 to 2
Antimicrobial
No
Description/Special Features
Nylon Toggle
Voltage
120/277V AC
Current Rating
15 A
Wire Connection Type
Screw Terminals
Market
Commercial
Number of Switches
1
Switch Material
Nylon
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Voltage Rating
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Type
Toggle
Style
Three Way
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Handle Positions
2
Max. Continuous Current
15A
Toggle Color
Gray
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Amperage
15A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Wiring Style
Back and Side Wired
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Specification Grade
Item Type
Three Way Commercial Toggle Switch
Material
Nylon
Connectivity
Back and Side Wired
Number Of Poles
Single Pole
Temperature Rise - Max.
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
General Purpose
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
15 A
Amperage Rating
15 A
Action
SPDT
Industry Standard(s)
UL Listed

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Housing Material Nylon, Market Commercial
