Shop HUBBELL WIRING DEVICE-KELLEMS

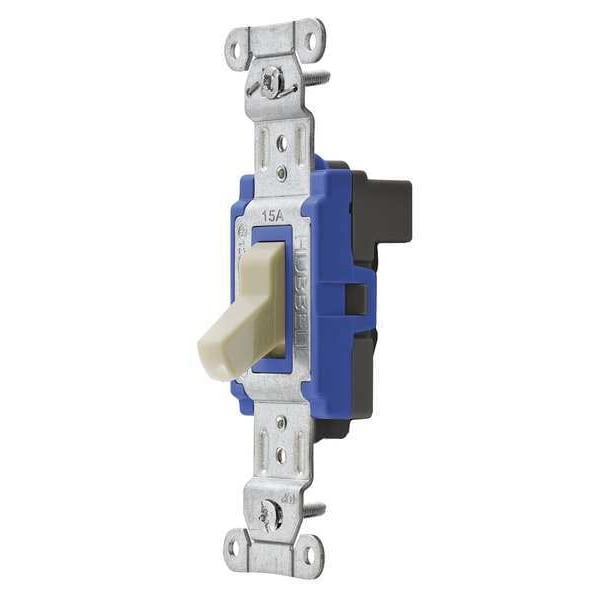

Wall Swtch, 1-Pol, 120/277V, 15A, Ivry, Toggl

  • Mfr # SNAP1201I

  • Zoro # G4559877

product price:  $10.29
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SNAP1201I
Zoro #
G4559877
UPC #
783585186443
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Height
1.74 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Rated HP
1/2 to 2
Wire Connection Type
Snap-In Module
Market
Industrial
Contact Material
Silver Alloy
Resistance Properties
Impact Resistant
Grounding
Grounded
Voltage Rating
120/277V AC
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Number of Switches
1
Housing Material
Thermoplastic
Current Rating
15 A
Minimum Operating Temperature
-40 Degrees F
Switch Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Type
Toggle
Style
Single Pole
Max. Continuous Current
15A
Contacts
Silver Alloy
Top Material
Thermoplastic, Blue
Max. Working Voltage
277V AC
Toggle Material
Thermoplastic
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
Uses SNAPConnect Connector
Terminals
Brass
Toggle Color
Ivory
Base Material
Thermoplastic, Black
Current / Amperage Rating
15 A
Voltage Rating Description
120-277 VAC
Series
General Purpose
Material
Thermoplastic
Amperage Rating
15 A
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Toggle Switch
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Nightlight
No
Illuminated
No

Description

Wall Switch, Color Ivory, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Contact Material Silver Alloy, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic
