  11. Wall Swtch, 1-Pol, 120/277V, 20A, Ivry, Press

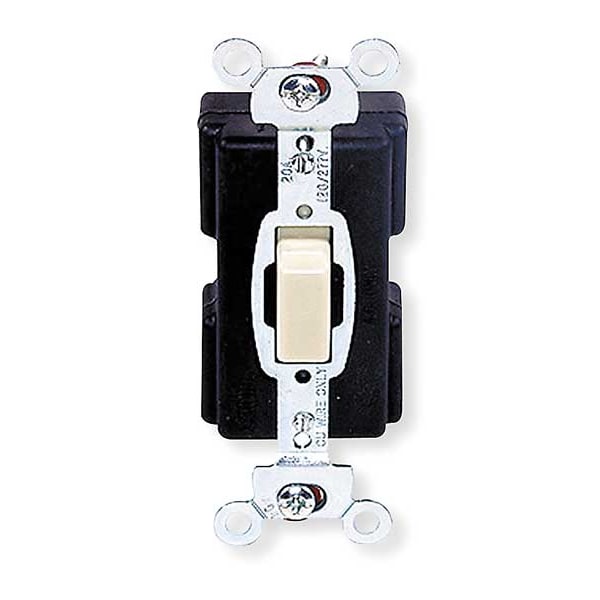

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pol, 120/277V, 20A, Ivry, Press HBL1281I - main

Wall Swtch, 1-Pol, 120/277V, 20A, Ivry, Press

  • Mfr # HBL1281I

  • Zoro # G1822265

product price: $39.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Push Button
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1281I
Zoro #
G1822265
UPC #
783585016825
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.5 in
Overall Height
1.5 in
Minimum Wire Size
14 AWG
Width
1.5 in
Length
3.28 in
Height
1.45 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.5 in x 1.45 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Push Button
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Side
Application Environment
Commercial
Rated HP
1
Antimicrobial
No
Standards
UL Listed
Switch Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Impact Resistant
Voltage Rating
120/277V AC
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
167 Degrees F
For Market
Industrial Grade
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Market
Industrial
Wire Connection Types
Screw Terminals
Current Rating
20 A
Number of Switches
1
Contact Material
Silver Alloy
Horsepower Rating
1 hp
Style
Single Pole
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Toggle Color
Ivory
Overload
Minimum 4.8 times rated current for 100 cycles
Product Type
AC Special Purpose Switches
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Approvals
UL, CSA
Max. Working Voltage
277V AC
Actuator Type
Press
Rating
20A 120/277V
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Voltage Rating Description
120-277 VAC
Item Type
Single Pole Toggle Switch
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Side Wired Only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
General Purpose
Number Of Poles
Single Pole
Amperage Rating
20 A

Description

Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Push Button, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
