  11. Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Rockr

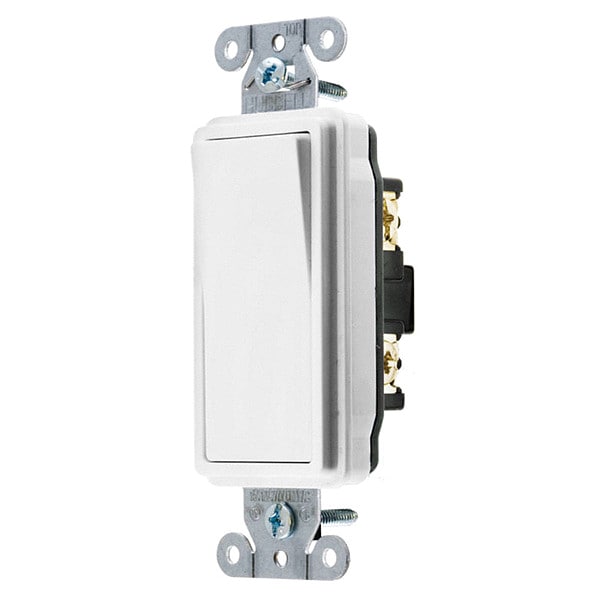

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Rockr DS115W - main

Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Rockr

  • Mfr # DS115W

  • Zoro # G3157122

product price: $13.91
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS115W
Zoro #
G3157122
UPC #
783585108315
Country of Origin
China

Dimensions

Overall Height
1.5 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Width
1.4 in
Height
1.54 in
Width
1.43 in
Length
4.28 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Antimicrobial
No
Rated HP
1/2
Standards
UL Listed
Voltage
120/277V AC
Horsepower Rating
1/2 hp
Market
Commercial
Current Rating
15 A
Voltage Rating
120/277V AC
Resistance Properties
Impact Resistant
Number of Switches
1
Features
Automatic Self-Grounding Staple
Housing Material
Thermoplastic
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Grounding
Grounded
Type
Rocker/Decorator
Style
Single Pole
Listing and Certifications
UL Listed and CSA Certified
Switch Handle Positions
2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Rocker Color
White
Flammability
UL 94V-2
Product Type
Toggle-switches
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Amperage
15A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Continuous Current
15A
Wiring Style
Back and Side Wired
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Decorator Series
Max. Working Voltage
277V AC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Back and Side Wired
Current / Amperage Rating
15 A
Series
General Purpose
Material
Thermoplastic
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Amperage Rating
15 A
Industry Standard(s)
UL Listed
Item Type
Single Pole Style Line Decorator Switch

Description

Wall Switch, Color White, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic, Market Commercial
