  11. Wall Swtch, 1-Pole, 120/277V, 20A, Blk, Toggl

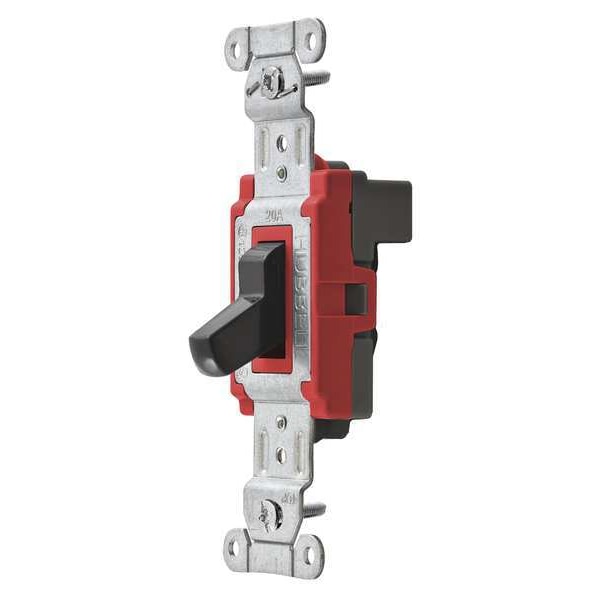

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 20A, Blk, Toggl SNAP1221BK - main

Wall Swtch, 1-Pole, 120/277V, 20A, Blk, Toggl

  • Mfr # SNAP1221BK

  • Zoro # G4569336

product price: $11.15
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221BK
Zoro #
G4569336
UPC #
783585186061
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Height
1.74 in
Length
4.18 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Rated HP
1 to 2
Standards
UL Listed
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Maximum Operating Temperature
75 Degrees C
Voltage Rating
120/277V AC
Grounding
Grounded
Housing Material
Thermoplastic
Number of Switches
1
Market
Industrial
Wire Connection Type
Modular Wiring
Minimum Operating Temperature
-40 Degrees F
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Current Rating
20 A
Type
Toggle
Style
Single Pole
Overload
Minimum 4.8 times rated current for 100 cycles
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Toggle Color
Black
Terminal Accommodations
Uses SNAPConnect Connector
Toggle Material
Thermoplastic
Terminals
Brass
Top Material
Thermoplastic, Red
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Contacts
Silver Alloy
Base Material
Thermoplastic, Black
Item Type
Single Pole Toggle Switch
Number Of Poles
Single Pole
Series
General Purpose
Voltage Rating Description
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Temperature Rise - Max.
30°C maximum at rated current

Description

Wall Switch, Color Black, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
