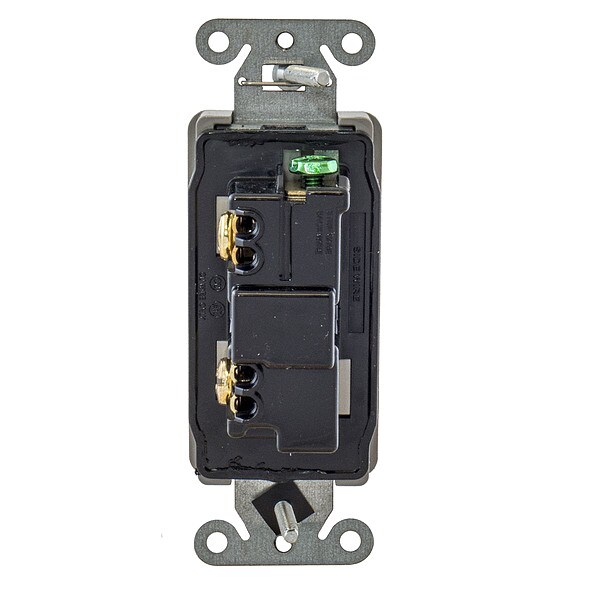

Wall Swtch, 1-Pole, 120/277V, 20A, Gry, Rockr

  • Mfr # DS120GY
  • Zoro # G2406275
product price:
$
21.80
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DS120GY
Zoro #
G2406275
UPC #
783585154435
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Height
1.5 in
Overall Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Fits Chest Size
Automatic Self-Grounding Staple

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Commercial
Rated HP
1
Standards
UL Listed
Antimicrobial
No
Voltage
120V AC, 277V AC
Market
Commercial
Resistance Properties
Impact Resistant
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Features
Automatic Self-Grounding Staple
Wire Connection Type
Screw Terminals
Number of Switches
1
Maximum Operating Temperature
167 Degrees F
Grounding
Grounded
Current Rating
20 A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Wiring Style
Back and Side Wired
Rocker Color
Gray
Max. Working Voltage
277V AC
Switch Grade
Decorator Series
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Max. Continuous Current
20A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Amperage
20A
Listing and Certifications
UL Listed and CSA Certified
Switch Handle Positions
2
Overload
Minimum 4.8 times rated current for 100 cycles
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Illuminated
No
Nightlight
No
Wire Color
Gray

Description

Wall Switch, Color Gray, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals
