  11. Wall Swtch, 1-Pole, 120/277V, 20A, Wht, Toggl

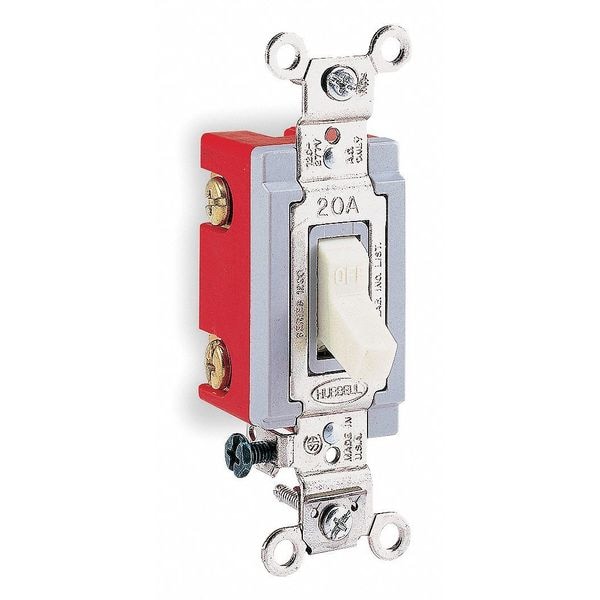

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 20A, Wht, Toggl HBL1221W - main

Wall Swtch, 1-Pole, 120/277V, 20A, Wht, Toggl

  • Mfr # HBL1221W

  • Zoro # G2350196

product price: $27.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1221W
Zoro #
G2350196
UPC #
783585431581
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Overall Height
1.9 in
Minimum Wire Size
14 AWG
Length
4.06 in
Height
1.87 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Rated HP
1
Antimicrobial
No
Voltage
120/277V AC
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Market
Industrial
Number of Switches
1
Horsepower Rating
1 hp
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Wire Connection Type
Screw Terminals
Switch Material
Nylon
Current Rating
20 A
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Type
Toggle
Style
Single Pole
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Switch Handle Positions
2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Grade
Industrial
Amperage
20A
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Toggle Color
White
Max. Continuous Current
20A
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired
Application
Back and Side Wired
Voltage Rating Description
120-277 VAC
Amperage Rating
20 A
Number Of Poles
Single Pole
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Industry Standard(s)
UL Listed

Description

Wall Switch, Color White, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
