  11. Wall Swtch, 2-Pole, 120/277V, 20A, Red, Toggl

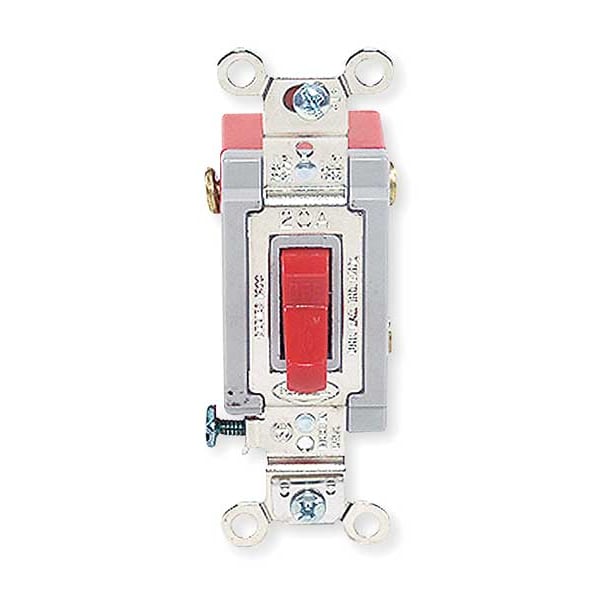

Hubbell Wiring Device-Kellems Wall Swtch, 2-Pole, 120/277V, 20A, Red, Toggl HBL1222R - main

Wall Swtch, 2-Pole, 120/277V, 20A, Red, Toggl

  • Mfr # HBL1222R

  • Zoro # G1438997

product price: $35.75
/ea

Key Features

Switch Type
Double Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1222R
Zoro #
G1438997
UPC #
783585431727
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.9 in
Maximum Wire Size
10 AWG
Overall Width
1.3 in
Height
1.87 in
Length
4.06 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Double Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1
Antimicrobial
No
Standards
UL Listed
Voltage
120/277V AC
Wire Connection Type
Screw Terminals
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Market
Industrial
Switch Material
Nylon
Voltage Rating
120/277V AC
Maximum Operating Temperature
75 Degrees C
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Number of Switches
1
Current Rating
20 A
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Style
Double Pole
Type
Toggle
Wiring Style
Back and Side Wired
Toggle Color
Red
Switch Handle Positions
2
Amperage
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Max. Continuous Current
20A
Switch Grade
Industrial
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Working Voltage
277V AC
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Double Pole
Connectivity
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Series
Extra Heavy Duty

Description

Wall Switch, Color Red, Current Rating 20 A, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
