  11. Wall Swtch, 3-Way, 120/277V, 15A, Gray, Toggl

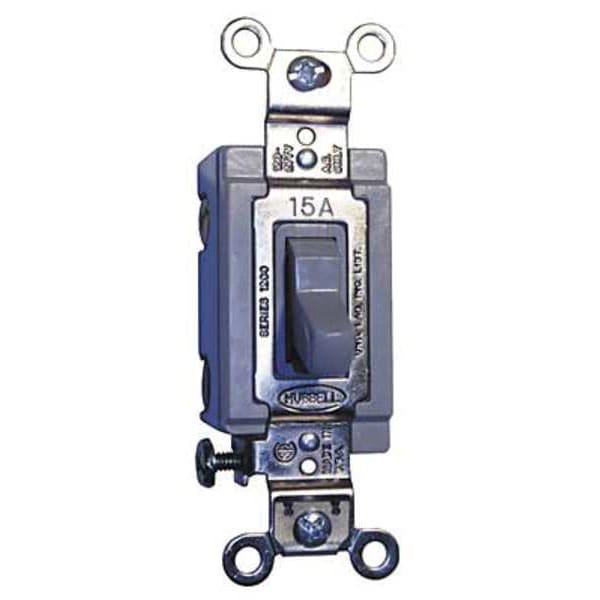

Hubbell Wiring Device-Kellems Wall Swtch, 3-Way, 120/277V, 15A, Gray, Toggl HBL1203GY - main

Wall Swtch, 3-Way, 120/277V, 15A, Gray, Toggl

  • Mfr # HBL1203GY

  • Zoro # G1995192

product price: $28.59
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1203GY
Zoro #
G1995192
UPC #
783585430249
Country of Origin
China

Dimensions

Overall Height
1.9 in
Overall Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Height
1.87 in
Width
1.31 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Rated HP
1/2
Standards
UL Listed
Voltage
120/277V AC
Horsepower Rating
1/2 hp
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Switch Material
Nylon
Number of Switches
1
Voltage Rating
120/277V AC
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Market
Industrial
Wire Connection Type
Screw Terminals
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Current Rating
15 A
Style
Three Way
Type
Toggle
Switch Grade
Industrial
Switch Handle Positions
2
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Product Type
Toggle-switches
Max. Continuous Current
15A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
Gray
Max. Working Voltage
277V AC
Wiring Style
Back and Side Wired
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Amperage
15A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Industry Standard(s)
UL Listed
Amperage Rating
15 A
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Current / Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Connectivity
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Action
SPDT

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
