  11. Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Rockr

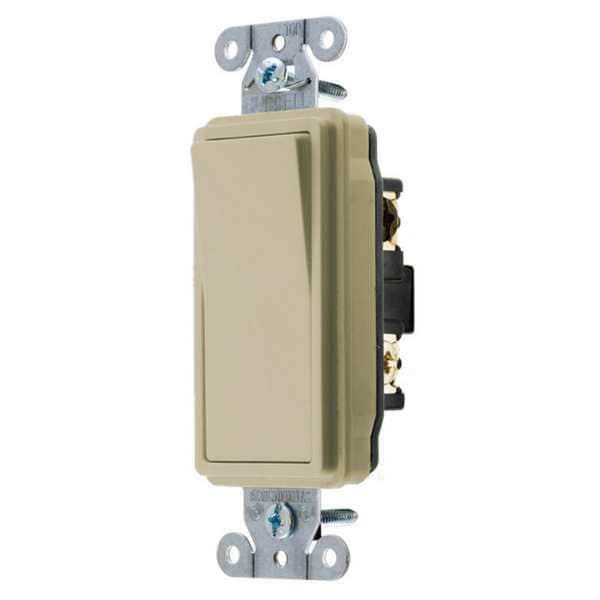

Hubbell Wiring Device-Kellems Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Rockr DS320I - main

Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Rockr

  • Mfr # DS320I

  • Zoro # G1802202

product price: $32.47
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS320I
Zoro #
G1802202
UPC #
783585108391
Country of Origin
China

Dimensions

Overall Width
1.4 in
Maximum Wire Size
10 AWG
Overall Height
1 in
Minimum Wire Size
14 AWG
Width
1.41 in
Height
1.01 in
Length
3.91 in
Dimensions
3.91 in x 1.41 in x 1.01 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Antimicrobial
No
Rated HP
1
Standards
UL Listed
Voltage
120/277V AC
Grounding
Grounded
Features
Automatic Self-Grounding Staple
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Resistance Properties
Impact Resistant
Voltage Rating
120/277V AC
Number of Switches
1
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Market
Commercial
Maximum Operating Temperature
75 Degrees C
Current Rating
20 A
Type
Rocker/Decorator
Style
Three Way
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Rocker Color
Ivory
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Amperage
20A
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
20A
Listing and Certifications
UL Listed and CSA Certified
Switch Handle Positions
2
Switch Grade
Decorator Series
Series
General Purpose
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Material
Thermoplastic
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Three Way Style Line Decorator Switch
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Action
SPDT

Description

Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic, Market Commercial
