  11. Watertight Flanged Locking Inlet, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Gray

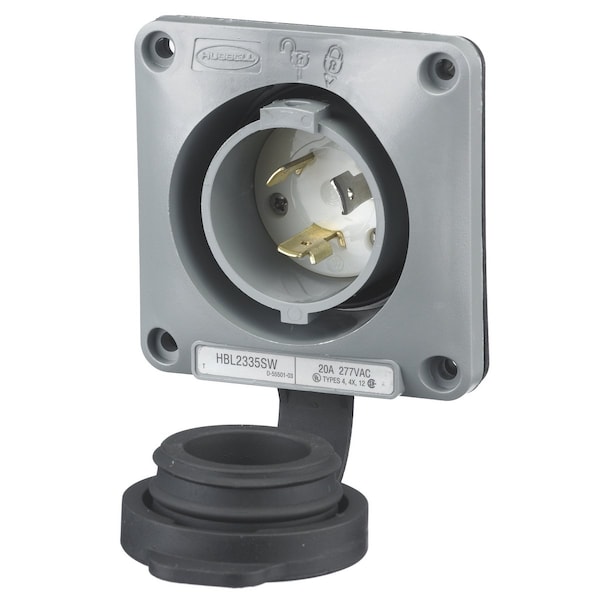

Hubbell Wiring Device-Kellems Watertight Flanged Locking Inlet, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Gray HBL2335SW - main

Watertight Flanged Locking Inlet, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Gray

  • Mfr # HBL2335SW

  • Zoro # G900701202

product price: $73.99
/ea

Key Features

Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2335SW
Zoro #
G900701202
UPC #
783585231242
Country of Origin
United States

Dimensions

Cord Size
16 to 8 AWG
Width
3.75 in
Height
2.28 in
Wire Size
#16 AWG to #8 AWG
Dimensions
3.75 in x 3.75 in x 2.28 in
Length
3.75 in

Details

Item
Watertight Locking Plug
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Cover Type
Closure Cap
IP Rating
IP66
NEMA Enclosure Rating
12, 4, 4X
Standards
4X And Type 12, CSA Certified To Type 4, UL Listed
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Material
Thermoplastic
Housing Material
Gray Valox
Retainer Material
Clear Polycarbonate
Contact Material
Brass
Dielectric Strength
2000V
Weight
0.6 lb
Screw Material
Stainless Steel
Flammability
UL 94 V0
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Extra Heavy Duty Industrial
Insulation
Insulated Body
Material - Mounting Hardware
Screw Mounting
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
NEMA Receptacle Configuration
L7-20P

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, WatertightSafety Shroud, Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20P, Screw Terminal, Gray
