Shop HUBBELL WIRING DEVICE-KELLEMS

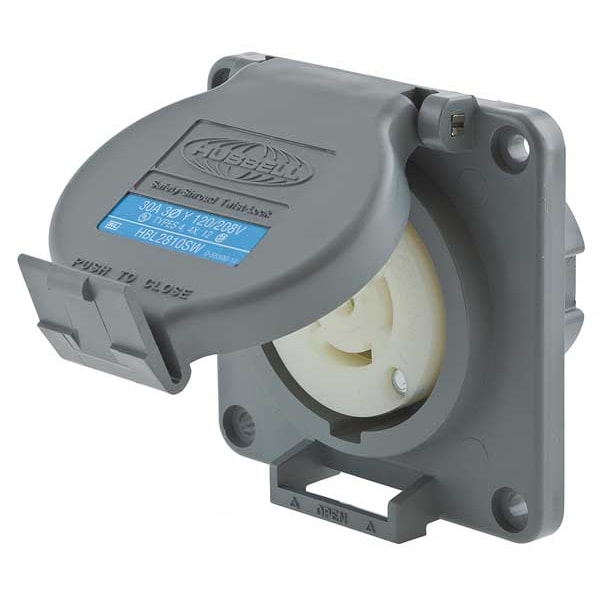

Watertight Flanged Locking Receptacle, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount

  • Mfr # HBL2810SW
  • Zoro # G1892791
product price:
$
170.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2810SW
Zoro #
G1892791
UPC #
783585232065
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Cord Size
16 to 8 AWG

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
Flange Type
Flanged
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Grade
Industrial
Wiring Style
Standard
Mounting Type
Flush Mount
Special Features
With Locking Cover
IP Rating
IP69K
Material
Nylon
Number of Gangs
1
Connection Orientation
Straight
Polarized
Yes
Horsepower Rating
3 hp
Maximum Operating Temperature
167 Degrees F
Housing Material
Valox
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
Contact Material
Brass
AFCI
No
NEMA Enclosure Rating
12, 4, 4X
Gasket Material
Closed-Cell Neoprene Foam
Retainer Material
Clear Polycarbonate
Screw Material
302/304 Stainless Steel
Weight
0.65 lb
Flammability
UL 94 V2
Dielectric Strength
2000V
NEMA Rating
12, 4, 4X
Amps
30
UL 94 Flammability Rating
V-2

Description

• UL type 4X environmental seal while in use and when closed
• High impact, thermoplastic housing for heavy-duty industrial environments
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
