  11. Watertight Flanged Locking Receptacle, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount

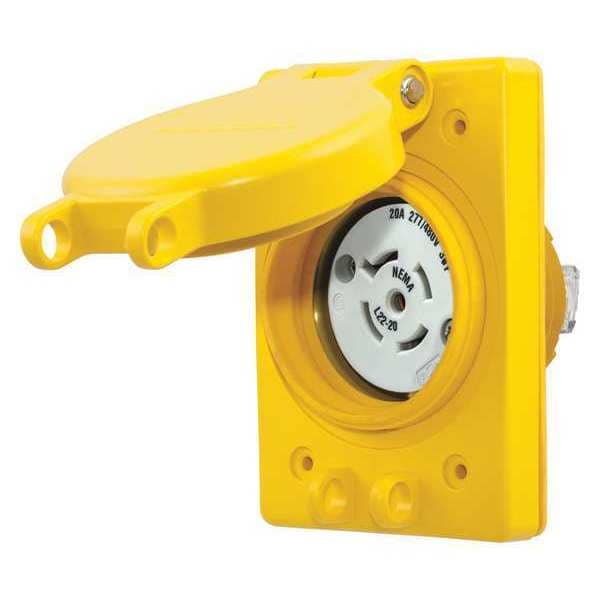

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount HBL67W82 - main

Watertight Flanged Locking Receptacle, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount

  • Mfr # HBL67W82

  • Zoro # G4572130

product price: $175.50
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL67W82
Zoro #
G4572130
UPC #
783585433219
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Cord Size
18 to 8 AWG
Wire Size
#18 AWG to #8 AWG
Height
2.92 in
Dimensions
4.56 in x 3.10 in x 2.92 in
Width
3.10 in
Length
4.56 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
Yes
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
4, 4X, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
Grade
Industrial
Special Features
With Cover
Mounting Type
Flush Mount
Material
Impact Modified PBT
AFCI
No
Number of Gangs
1
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Flange Shape
Rectangular
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Market
Industrial
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amperage Rating
20 A
NEMA Rating
4, 4X, 6P
Amps
20

Description

Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
• Impact resistant PBT lid, cover plate, and receptacle body
• Thermoplastic elastomer seal
• Stainless steel hardware and corrosion-resistant connection points
