  11. Watertight Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount

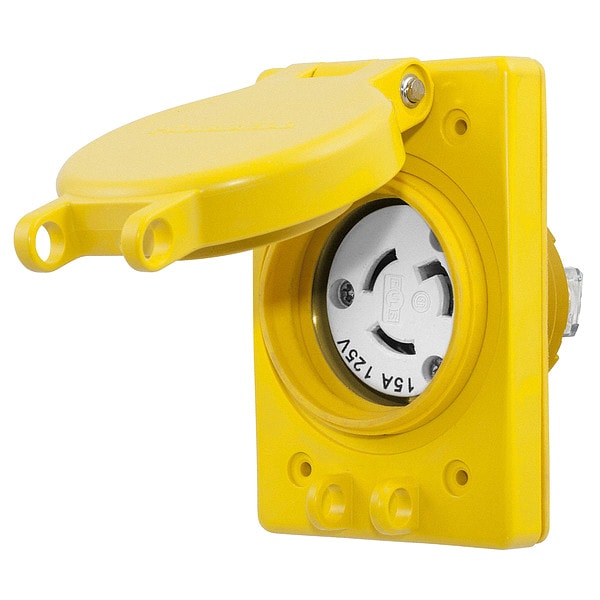

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount HBL65W47 - main

Watertight Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL65W47

  • Zoro # G9990635

product price: $121.77
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL65W47
Zoro #
G9990635
UPC #
783585456614
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
#18 AWG to #10 AWG
Height
2.66 in
Length
4.56 in
Dimensions
4.56 in x 3.10 in x 2.66 in
Width
3.10 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Grade
Industrial
Special Features
Corrosion resistant
Wiring Style
Standard
Material
Nylon
Mounting Type
Flush Mount
Flange Shape
Rectangular
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
AFCI
No
Market
Industrial
Polarized
Yes
Number of Gangs
1
Insulation Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Body Material
PBT
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
15

Description

The HUBBELL 15A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for use in industrial environments. Including a flip-up cover and an impact-resistant body, this receptacle accommodates NEMA L5-15R configurations and supports single-phase, 2-pole, 3-wire circuits at 125V AC. It can be installed in locations requiring moisture resistance and durability.


Key Features of the HUBBELL 15A Watertight Flanged Locking Receptacle:

  • Current/Voltage Rating: Rated for 15 amps at 125V AC

  • NEMA Configuration: L5-15R locking type with polarized design

  • Mounting Type: Flush mount with rectangular flange

  • Casing Materials: Impact-resistant PBT body; thermoplastic elastomer housing and insulation; corrosion-resistant metallic components

  • Cover Type: Flip-up lid is designed to limit water ingress when closed

  • Wire Connection: Screw terminals accept #18 AWG to #10 AWG wire sizes

  • NEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, and 6P requirements for water and dust ingress protection

  • IP Rating: IP69K rated for high-pressure washdown environments

  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)

  • Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 specifications
