Watertight Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount

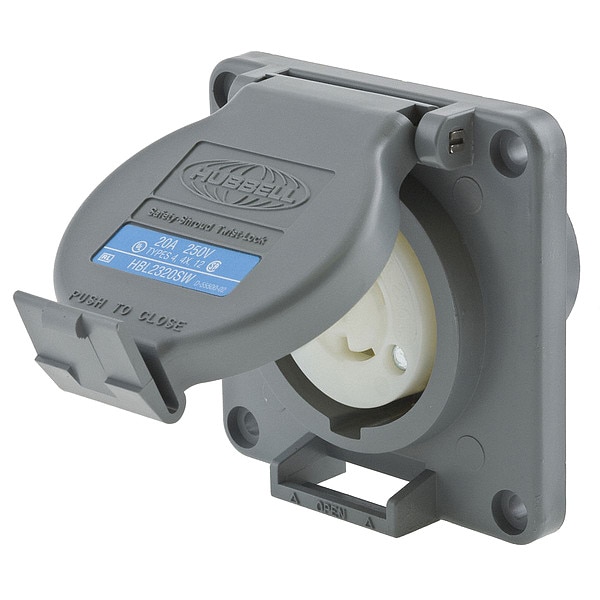

The HUBBELL 20A Watertight Twist-Lock Receptacle is a flanged locking receptacle intended for use in environments where a watertight electrical connection is specified. Rated for 20 amps and 250V AC, this device includes a twist-lock mechanism and visual alignment indicators. The receptacle is rated UL Type 4X for performance both during operation and when closed, making it suitable for environments that require moisture resistance.

Key Features of the HUBBELL 20A Watertight Flanged Locking Receptacle:

• NEMA Configuration: L6-20R; rated for single-phase, 2-pole/3-wire circuits


• Current/Voltage Rating: 20 A, 250V AC


• Enclosure Ratings: IP69K; NEMA Types 12, 4, and 4X


• Material Construction: Valox housing and flange; brass contacts; nylon components


• Cord Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via screw terminals


• Operating Temperature Range: -40°F to +167°F (-40°C to +75°C)


• Flammability Rating: UL94 V0 (housing), V-2 (overall)


• Mounting Type: Flush mount design with shrouded construction


• Resistance Properties: Rated IP69K; includes closed-cell neoprene foam gasket


• Special Feature: Includes cover
