  11. Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount

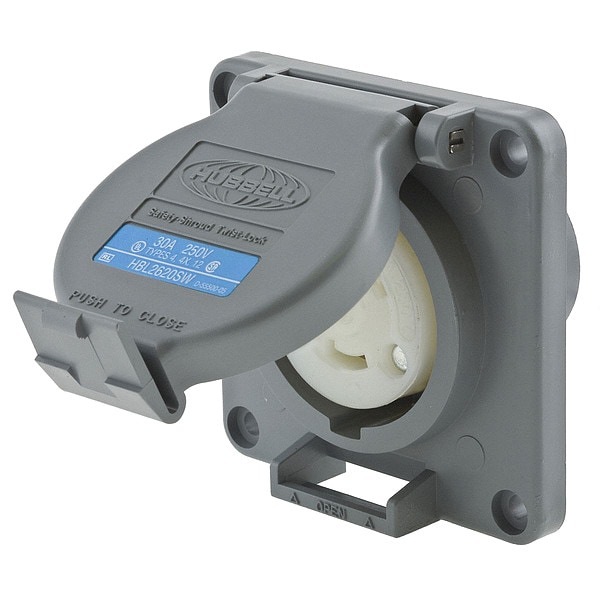

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount HBL2620SW - main

Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL2620SW

  • Zoro # G2258487

product price: $121.16
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2620SW
Zoro #
G2258487
UPC #
783585231662
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Cord Size
16 to 8 AWG

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
Material
Reinforced Nylon
Special Features
With Locking Cover 3.75 in L x 3.75 in W x 2.69 in H
Mounting Type
Flush Mount
Grade
Industrial
Number of Gangs
1
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
AFCI
No
Housing Material
Valox
Polarized
Yes
Connection Orientation
Straight
Retainer Material
Clear Polycarbonate
Weight
0.55 lb
Flange Material
Gray Valox
Flammability
UL 94 V0
Gasket Material
Closed-Cell Neoprene Foam
Screw Material
302/304 Stainless Steel
Dielectric Strength
2000V
NEMA Rating
12, 4, 4X
Amps
30

Description

Watertight Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Type Non-Flanged, Housing Color Gray, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Receptacle Configuration L6-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type Locking Flip-Up Cover
