  11. Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount

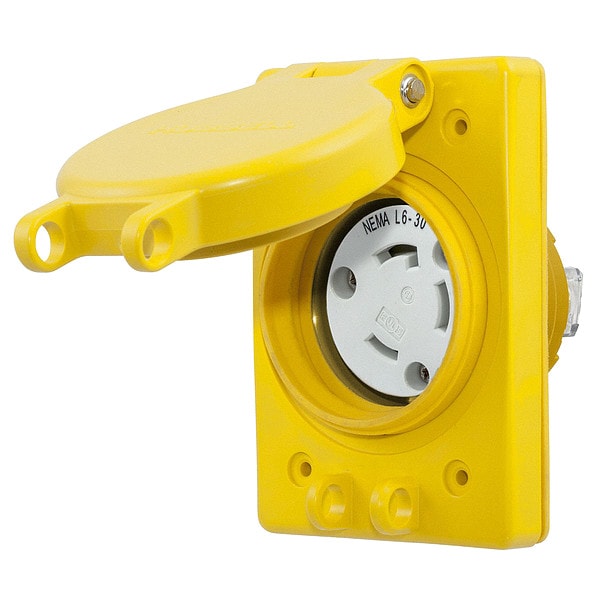

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount HBL69W48 - main

Watertight Flanged Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL69W48

  • Zoro # G9990565

product price: $155.25
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL69W48
Zoro #
G9990565
UPC #
783585433257
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Cord Size
18 to 8 AWG
Wire Size
#18 AWG to #8 AWG
Height
2.92 in
Length
4.56 in
Width
3.10 in
Dimensions
4.56 in x 3.10 in x 2.92 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
3R, 3RX, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Grade
Industrial
Material
Nylon
Mounting Type
Flush Mount
Wiring Style
Standard
Special Features
With Cover
Flange Shape
Rectangular
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
140 Degrees F
Insulation Material
Thermoplastic Elastomer
Polarized
Yes
AFCI
No
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Number of Gangs
1
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
30

Description

Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
• Impact resistant PBT lid, cover plate, and receptacle body
• Thermoplastic elastomer seal
• Stainless steel hardware and corrosion-resistant connection points
