  11. Watertight Flanged Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount

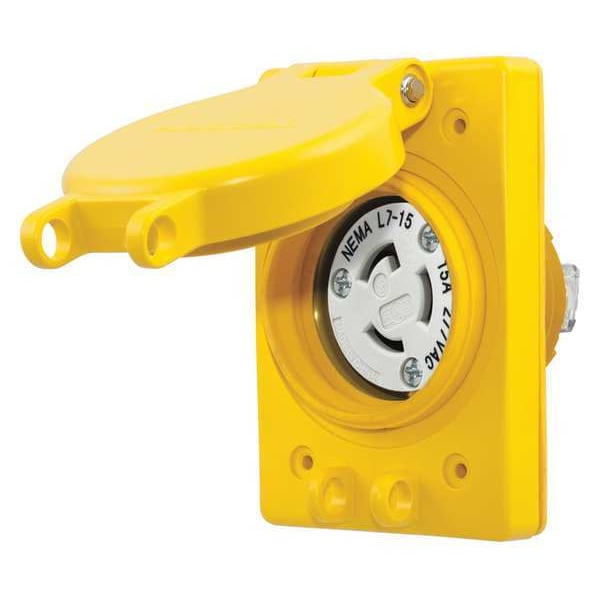

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount HBL65W34 - main

Watertight Flanged Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL65W34

  • Zoro # G9990617

product price: $121.77
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL65W34
Zoro #
G9990617
UPC #
783585456607
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
#18 AWG to #10 AWG
Length
4.56 in
Width
3.10 in
Height
2.66 in
Dimensions
4.56 in x 3.10 in x 2.66 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Special Features
Corrosion resistant
Wiring Style
Standard
Grade
Industrial
Material
Nylon
Mounting Type
Flush Mount
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Contact Material
Nickel-Plated Brass
Insulation Material
Thermoplastic Elastomer
Market
Industrial
Connection Orientation
Straight
AFCI
No
Flange Shape
Rectangular
Housing Material
Thermoplastic Elastomer
Body Material
PBT
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
15

Description

Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
• Impact resistant PBT lid, cover plate, and receptacle body
• Thermoplastic elastomer seal
• Stainless steel hardware and corrosion-resistant connection points
