  11. Watertight Locking Connector, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

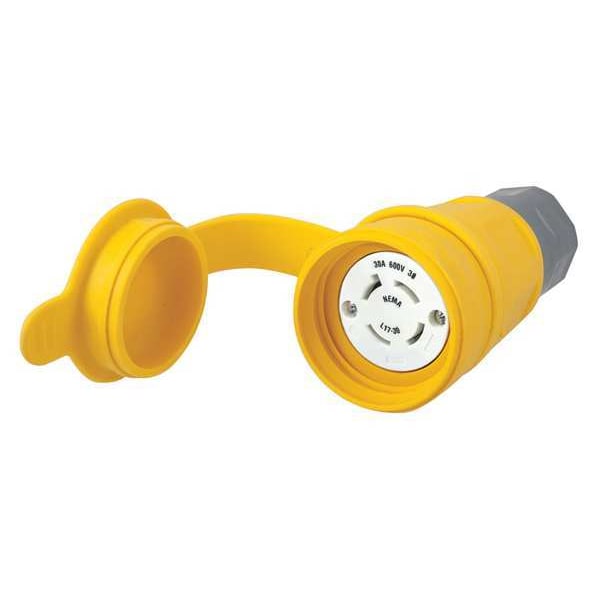

Hubbell Wiring Device-Kellems Watertight Locking Connector, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow HBL29W77 - main

Watertight Locking Connector, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL29W77

  • Zoro # G9990644

product price: $178.20
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL29W77
Zoro #
G9990644
UPC #
783585131917
Country of Origin
United States

Dimensions

Cord Size
0.375 in to 1.125 in
Overall Length
2.77 in
Outside Diameter
2.77 in
Minimum Wire Size
18 AWG
For Minimum Cable Diameter
0.375 in
For Maximum Cable Diameter
1 in
Maximum Wire Size
8 AWG
Width
2.77 in
Height
5.67 in
Length
2.77 in
Dimensions
2.77 in x 2.77 in x 5.67 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L17-30R
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Material
Thermoplastic Elastomer, Valox
Special Features
Corrosion resistant
Grade
Industrial
IP Rating
IP69K
Body Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Market
Industrial
Contact Material
Nickel-Plated Brass
Power Indicating Light
No
Midget Locking
No
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
3500V AC
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 30A Watertight Locking Connector (L17-30R) is a three-pole, four-wire connector designed for industrial and commercial electrical applications intended for use in environments where watertight protection is specified. Constructed with a smooth thermoplastic elastomer body and corrosion-resistant components, this connector features a smooth body design. It is rated for 600VAC operation and meets NEMA WD-1, WD-6, ANSI standards, as well as multiple enclosure ratings including NEMA 4, 4X, 6, 6P and IP69K.


Key Features of the HUBBELL - 30A Watertight Locking Connector:

  • Current/Voltage Rating: Rated for up to 30 amps and 600V AC

  • NEMA Configuration: L17-30R; three poles/four wires; grounded

  • Body Material: Thermoplastic elastomer housing with Valox construction for durability

  • Cord Accommodation: Accepts cord diameters from 0.375 in to 1.125 in

  • Operating Temperature Range: -40°C to +60°C continuous use

  • Resistance Properties: Constructed from materials listed as corrosion resistant, moisture resistant (UL Listed), and UV stabilized

  • Connection Type: Screw terminals with nickel-plated brass contacts

  • NEMA & IP Ratings: Meets the following enclosure ratings: NEMA Types 12, 4, 4X, 6; IP69K

  • Strain Relief Nut Design: Strain relief nut designed to fit securely on the connector body
