  11. Watertight Locking Connector, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals

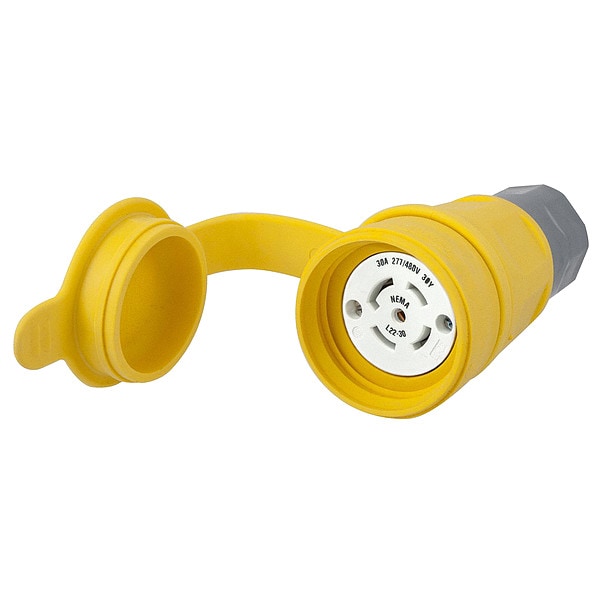

Hubbell Wiring Device-Kellems Watertight Locking Connector, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals HBL29W82 - main

Watertight Locking Connector, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # HBL29W82

  • Zoro # G9990391

product price: $163.35
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL29W82
Zoro #
G9990391
UPC #
783585131948
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Overall Length
2.77 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Length
2.77 in
Height
5.67 in
Width
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 5.67 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
IP Rating
IP69K
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Special Features
Corrosion resistant
Grade
Industrial
Material
Thermoplastic Elastomer, Valox
Body Material
Thermoplastic Elastomer
Horsepower Rating
10 hp
Market
Industrial
UL 94 Flammability Rating
HB
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Midget Locking
No
Contact Material
Nickel-Plated Brass
Housing Material
Thermoplastic Elastomer
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
3500V AC
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
NEMA Rating
4, 4X, 6, 6P
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Watertight Locking Connector (L22-30R) is an electrical connector intended for industrial and commercial applications. It features an IP69K rated enclosure with a smooth body design to minimize debris collection and simplify washdown processes. The connector accommodates 4 poles and 5 wires, supports three-phase power at 277/480VAC, and utilizes screw terminals for secure wire connections.


Key Features of the HUBBELL 30A Watertight Locking Connector:

  • Current/Voltage Rating: Rated for 30 amps and 277/480V AC operation

  • NEMA Configuration: L22-30R; meets NEMA WD-1, WD-6, ANSI standards

  • IP69K rated; constructed to withstand exposure to water and corrosive elements

  • Material Construction: Thermoplastic elastomer housing with nickel-plated brass contacts; UV stabilized materials

  • Cord Accommodation: Accepts cable diameters from 0.375 in to 1.125 in; maximum wire size up to 8 AWG

  • Rated for operation within a temperature range of -40°C to +60°C

  • NEMA Enclosure Ratings: Complies with NEMA Types 4, 4X, 6, and 6P for moisture resistance

  • Smooth body design with strain relief nut
