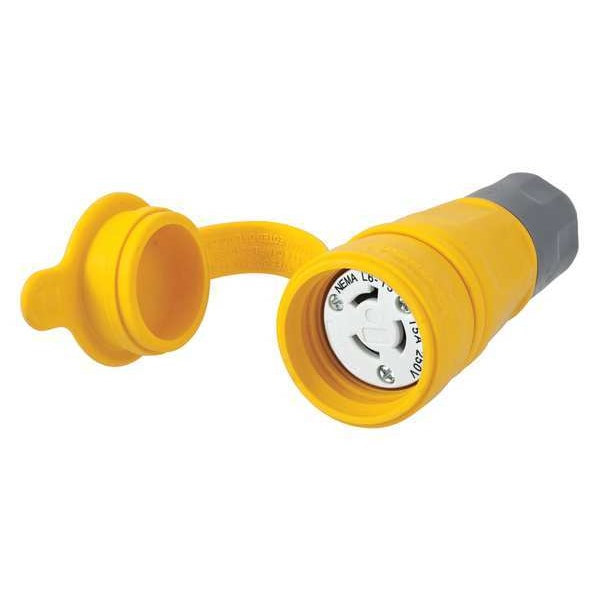

Watertight Locking Connector, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow
Mfr # HBL25W49
Zoro # G9990784
product price: $55.69
/eaKey Features
NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL25W49
Zoro #
G9990784
UPC #
783585131337
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.300 in to 0.625 in
Overall Length
1.85 in
Outside Diameter
1.85 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Width
1.85 in
Length
1.85 in
Height
4.62 in
Wire Size
16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S
Dimensions
1.85 in x 1.85 in x 4.62 in
Description
The HUBBELL 15A Watertight Locking Connector (L6-15R) is a two-pole, three-wire device rated for 250V AC and suitable for industrial and commercial applications. This connector features a smooth thermoplastic elastomer body that features a smooth thermoplastic elastomer body intended to facilitate cleaning procedures. It accommodates cord sizes from 0.300 to 0.625 inches and uses screw terminals for secure wire connections.
Key Features of the HUBBELL 15A Watertight Locking Connector:
- Body and Housing Material: Thermoplastic elastomer with Valox components constructed with thermoplastic elastomer and Valox components provides durability and resistance to harsh conditions.
- Contact Material: Nickel-plated brass contacts are used for electrical connections support reliable electrical performance.
- NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; see specifications for enclosure suitability including wet locations suitable for wet locations requiring watertight protection.
- IP Rating: IP69K rating per standard testing methods (see manufacturer documentation) indicates high resistance to water ingress during cleaning or operation.
- Cord Accommodation: Accepts cable diameters from 0.375" to 0.625".
- Wire Size Compatibility: Supports wire sizes from #18 AWG up to #10 AWG (16/3 SJ to 10/3 SJ; 18/3 S to 12/3 S).
- Operating Temperature Range: Rated operating temperature range: -40°C to +60°C.
- Corrosion Resistance & UV Stabilization: Exposed materials are specified as corrosion resistant and UV stabilized per manufacturer information.
- Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL listed as moisture resistant with dielectric strength of up to 2500V AC.
