  11. Watertight Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

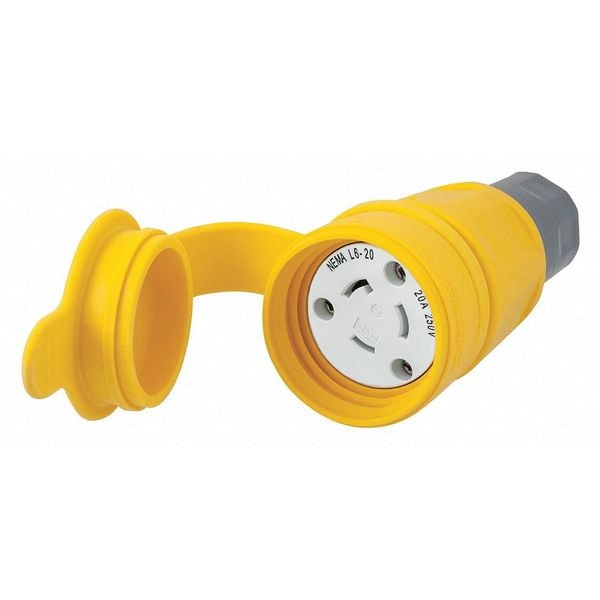

Hubbell Wiring Device-Kellems Watertight Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL27W48 - main

Watertight Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL27W48

  • Zoro # G9990757

product price: $84.11
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL27W48
Zoro #
G9990757
UPC #
783585131481
Country of Origin
United States

Dimensions

Cord Size
0.325 in to 0.875 in
Overall Length
2.51 in
Outside Diameter
2.51 in
For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Length
2.51 in
Width
2.51 in
Height
5.69 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 5.69 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Grade
Industrial/Commercial
Material
Thermoplastic Elastomer, Valox
IP Rating
IP69K
Special Features
Corrosion resistant
Body Material
Thermoplastic Elastomer
Market
Industrial
UL 94 Flammability Rating
HB
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
Power Indicating Light
No
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Maximum Operating Temperature
140 Degrees F
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 20A Watertight Locking Connector (L6-20R) is a heavy-duty electrical connector suitable for use in industrial and commercial environments requiring watertight connections. It features a smooth thermoplastic elastomer body that minimizes collection points, simplifying washdown processes and reducing debris accumulation. The connector accommodates cords ranging from 0.375 to 0.875 inches in diameter and uses screw terminals for wire connections.


Key Features of the HUBBELL 20A Watertight Locking Connector:

  • Current/Voltage Rating: Rated for 20 A, 250V AC, single phase

  • NEMA Configuration: L6-20R with straight connection orientation

  • Watertight Ratings: NEMA Type 4, 4X, 6, 6P, and IP69K moisture resistance

  • Material Construction: Body and housing made from thermoplastic elastomer; contacts are nickel-plated brass; retainer is clear polycarbonate

  • Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in; supports wire sizes from minimum cord (16/3 SJ or equivalent) up to maximum cord (10/5 S or equivalent)

  • Corrosion & UV Resistance: Exposed materials are corrosion-resistant and UV stabilized

  • Operating Temperature Range: -40°C to +60°C continuous operation

  • Dielectric Strength & Performance: Withstands up to 2500V AC dielectric voltage; temperature rise limited to max of +30°C at rated current per UL498

  • Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL listed flammability rating HB
