  11. Watertight Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

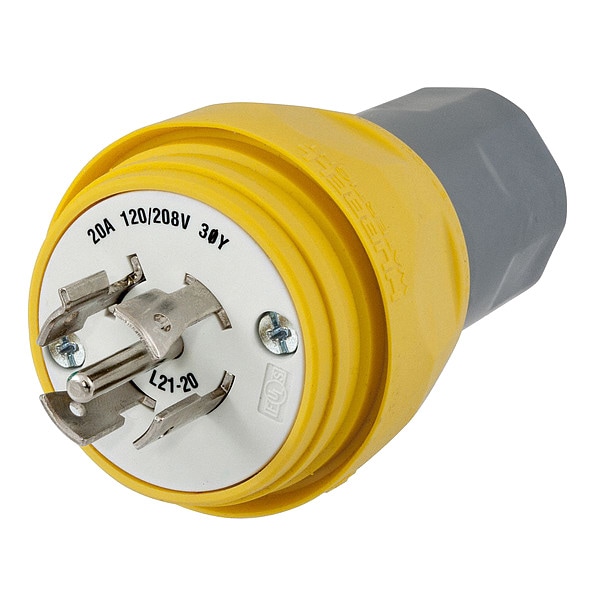

Hubbell Wiring Device-Kellems Watertight Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow HBL26W81 - main

Watertight Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

  • Mfr # HBL26W81

  • Zoro # G0069721

product price: $103.95
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL26W81
Zoro #
G0069721
UPC #
783585131665
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Outside Diameter
2.51 in
Body Length
2.51 in
Length
2.51 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Height
3.96 in
Dimensions
2.51 in x 2.51 in x 3.96 in
Width
2.51 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Special Features
Moisture, Dust and Weather Resistant
Material
Thermoplastic Elastomer, Valox
Grade
Industrial
Market
Industrial
Polarized
Yes
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees C
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Blade Material
Brass
Bushing Material
Black Elastomer
Dielectric Strength
2500V AC
Body Material
Thermoplastic Elastomer
Contact Material
Nickel Plated Brass
Retainer Material
Clear Polycarbonate
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Amps
20
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L21-20P, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.875 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
