  11. Watertight Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

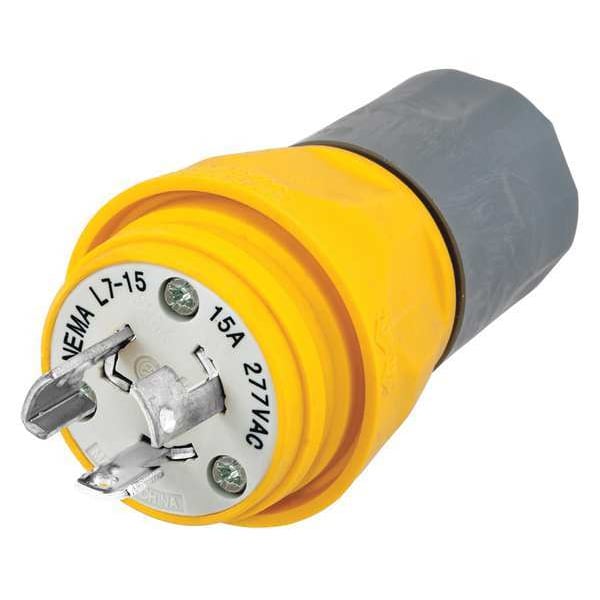

Hubbell Wiring Device-Kellems Watertight Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL24W34 - main

Watertight Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL24W34

  • Zoro # G0070099

product price: $43.35
/ea

Key Features

NEMA Plug Configuration
L7-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL24W34
Zoro #
G0070099
UPC #
783585131238
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.300 in to 0.625 in
Outside Diameter
1.85 in
Body Length
1.85 in
Wire Size
16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S
Length
1.85 in
Width
1.85 in
Height
3.21 in
Dimensions
1.85 in x 1.85 in x 3.21 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L7-15P
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Material
Thermoplastic Elastomer, Valox
Grade
Industrial
Special Features
Moisture, Dust and Weather Resistant
Blade Material
Nickel-Plated Brass
Polarized
Yes
Market
Industrial
Housing Material
Thermoplastic Elastomer
Horsepower Rating
2 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees C
Dielectric Strength
2500V AC
Body Material
Thermoplastic Elastomer
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Contact Material
Nickel Plated Brass
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.625" (9.5-15.9)
Amps
15
NEMA Configuration
L7-15
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L7-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
