  11. Watertight Pin & Sleeve Connector, 100 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

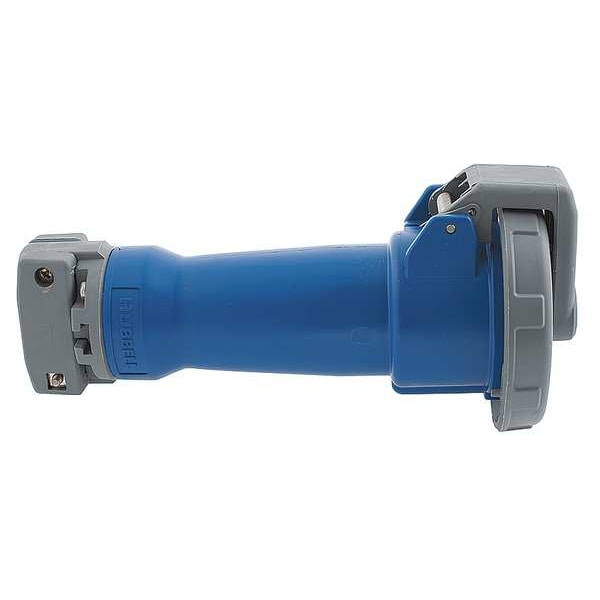

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 100 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue HBL3100C6W - main

Watertight Pin & Sleeve Connector, 100 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

  • Mfr # HBL3100C6W

  • Zoro # G3498512

product price: $712.80
/ea
Free Shipping & Returns

Key Features

Current Rating
100 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3100C6W
Zoro #
G3498512
UPC #
783585403045
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.94 in
For Minimum Cable Diameter
1.605 in
Overall Length
13.14 in
Outside Diameter
5.06 in
Maximum Wire Size
1/0 AWG
Face Diameter
4.71 in
Minimum Wire Size
3 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
100 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
HP
15 hp
Market
Industrial
Horsepower Rating
15 hp
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
Housing Material Grade
Zytel 801
Maximum Operating Temperature
75 Degrees C
Housing Material
PBT
Reverse Service
No
Compatible with Series
HBL Heavy Duty
Power Indicating Light
No

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector with IP68/IP69K ingress protection. Rated for 100A and 250V AC, this single-phase connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, providing resistance to impact, moisture, and harsh conditions. The device includes color-coded housings for identification and a self-closing gasketed cover.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 100 amps at 250V AC single phase

  • Housing Material: Constructed with Zytel 801 nylon body and PBT housing

  • Ingress Protection: IP68/IP69K rated; NEMA Type 4X enclosure

  • Cable Accommodation: Accepts cable diameters from 1.065 in to 1.94 in; wire size range from 3 AWG to 1/0 AWG

  • Operating Temperature Range: -40°C minimum to +75°C maximum

  • Connection Type: Screw terminals with straight orientation

  • Pole/Wire Configuration: Two poles, three wires; grounded per IEC style

  • Horsepower Rating: Rated up to 15 HP loads

  • Certain Standards Met: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed

  • Additionals: Shrouded design with spring-loaded cap; external cord grip provides strain relief; flammability rating UL94 V-0
