  6. Watertight Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red

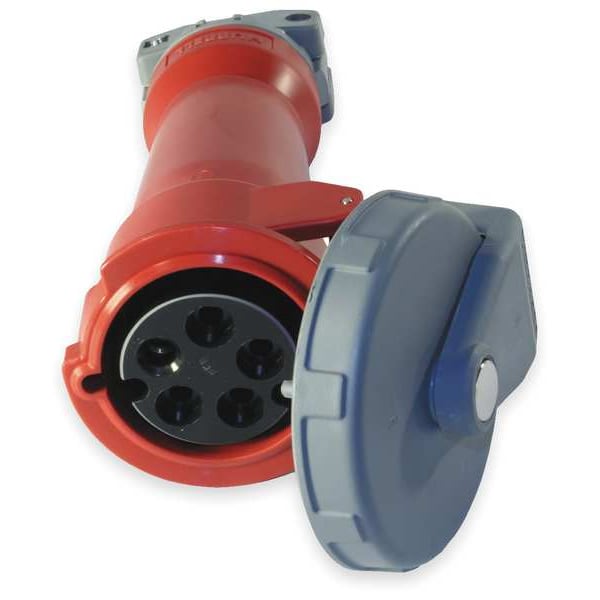

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red HBL530C7W - main

Watertight Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red

  • Mfr # HBL530C7W

  • Zoro # G1361622

product price:  $379.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL530C7W
Zoro #
G1361622
UPC #
783585405445
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.45 in
For Minimum Cable Diameter
0.50 in
Overall Length
9.33 in
Outside Diameter
4.02 in
Maximum Wire Size
8 AWG
Face Diameter
3.88 in
Minimum Wire Size
12 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
HP
7 1/2 hp
Body Material - Pin and Sleeve
Zytel 801 Nylon
Application
High Ampacity Connections
Reverse Service
No
Horsepower Rating
15 hp
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Shrouded
Yes
Compatible with Series
HBL Heavy Duty
Housing Material
PBT
Maximum Operating Temperature
75 Degrees C
Housing Material Grade
Zytel 801
Power Indicating Light
No
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Number Of Conductors
5-Wire Grounding
Style
Standard Service
Conductor Range
#12 AWG to #8 AWG
Series
HBL Heavy Duty
Insulation
Insulated Body
Environmental Conditions
Watertight
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for use in industrial settings and specified current/voltage levels. Rated for 30 amps and 277/480V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with materials selected for durability under typical operating conditions. It accommodates 5-wire grounding with screw terminal connectivity and is compatible with the HBL Heavy Duty series.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 30 A at 277/480V AC three-phase power

  • Body Material: Constructed from Zytel 801 nylon for durability

  • Environmental Protection: Watertight design with IP68/IP69K ingress protection ratings

  • Cord Grip: External cord grip is intended to reduce strain on conductors during installation and use

  • Wire Accommodation: Accepts #12 AWG to #8 AWG wire sizes; supports up to five wires (4 poles + ground)

  • Connection Type: Pressure terminal screws accommodate wire connection as specified by manufacturer instructions

  • Color Coding: Red housing allows easy voltage identification

  • Cover Feature: Self-closing gasketed cover is constructed from materials selected for corrosion resistance; covers internal components when closed

  • Temperature Range: Operates between -40°C (without impact) up to +75°C continuous use

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed device
