  6. Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 1 Grounding

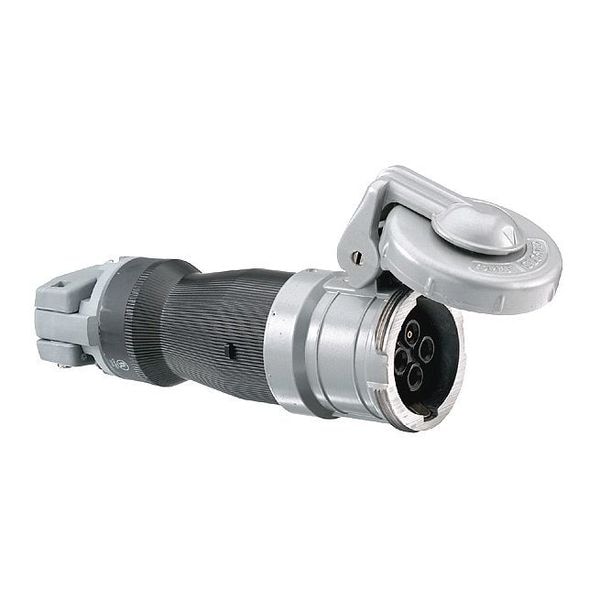

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 1 Grounding HBL430CS1W - main

Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 1 Grounding

  • Mfr # HBL430CS1W

  • Zoro # G0949392

product price:  $307.80
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
600V AC/250V DC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL430CS1W
Zoro #
G0949392
UPC #
783585010144
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.78 in
For Minimum Cable Diameter
0.36 in
Overall Length
8.38 in
Outside Diameter
3.74 in
Minimum Wire Size
10 AWG
Maximum Wire Size
8 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
600V AC/250V DC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
Style 1
Housing Color
Gray
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal
Body Material - Pin and Sleeve
Valox 357 Housing and Aluminum Shroud
Body Material
Valox 357 Housing and Epoxy Painted Aluminum Shroud
Material
Composite
Application
Metallic with Nylon Shroud
Power Indicating Light
No
Market
Industrial
Shrouded
Yes
Reverse Service
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Compatible with Series
UL 1686 Class 1 Insulgrip(R)
Housing Material Grade
Valox 357
Series
UL 1686 Class 1 Insulgrip®
Insulation
Insulated Body
Number Of Conductors
4-Wire Grounding
Environmental Conditions
Watertight
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Standard Service,Style 1 Grounding
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 Environmental - Operating Temperatures - Max. Continuous 75°C Min. -40°C w/o impact -25° with impact Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Industry Standard(s)
CSA Certified to CSA Spec. C22.2 No. 182.1 UL Listed and CSA Certified Type 4X UL Standard 1682
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
#10 AWG to #8 AWG
Connection Type
Screw Terminals

Description

The HUBBELL Watertight Pin & Sleeve Connector is a 30A, 600VAC/250VDC industrial wiring device suitable for applications requiring moisture and impact resistance, as specified by its ratings. It features a composite construction with a Valox 357 thermoplastic housing and an epoxy-painted aluminum shroud, with materials selected for their specified performance characteristics. The connector accommodates #10 AWG to #8 AWG conductors, compatible with three-phase power systems using a four-wire grounding configuration, and utilizes pressure terminal screws for conductor connection.


Key Features of the HUBBELL Watertight Pin & Sleeve Connector:

  • Current/Voltage Rating: Rated for 30 amps at up to 600VAC or 250VDC

  • Construction: Valox 357 thermoplastic housing with aluminum shroud; cord mounted design

  • Environmental Protection: Neoprene sealing glands; NEMA Type 4X enclosure rating; IP68/IP69K ingress protection ratings

  • Operating Temperature Range: -40°C to +75°C (continuous)

  • Cable Accommodation: Accepts cable diameters from 0.375 in to 1.2 in; conductor range #10 AWG–#8 AWG

  • Connection Method: Pressure terminal screws for conductor connection

  • Grounding Style: Style 1 grounding with four-wire configuration (three poles plus ground)

  • Features: Spring-loaded, gasketed cover designed to limit dust ingress; pin chamber design intended to contain arcing within the interior compartment

  • Standards Compliance: UL Listed, CSA Certified C22.2 No.182.1, UL Standard 1682; flammability rating UL94 V-0
