  11. Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 2 Grounding

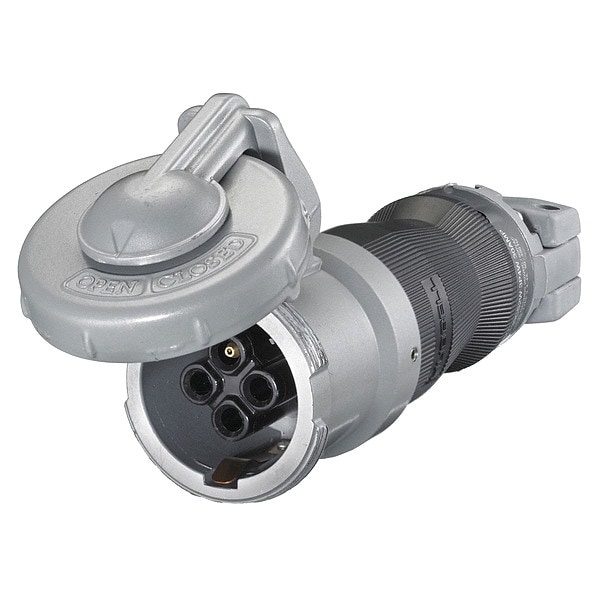

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 2 Grounding HBL430CS2W - main

Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 2 Grounding

  • Mfr # HBL430CS2W

  • Zoro # G0840122

product price: $365.85
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
600V AC/250V DC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL430CS2W
Zoro #
G0840122
UPC #
783585010205
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.78 in
For Minimum Cable Diameter
0.36 in
Outside Diameter
3.74 in
Overall Length
8.38 in
Minimum Wire Size
10 AWG
Maximum Wire Size
8 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
600V AC/250V DC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
Style 2
Housing Color
Gray
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, UL 1682, UL Listed and CSA Certified Type 4X
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Pin Chamber Confines Arcing within the Interior Chamber, Spring-Loaded, Gasketed Cover for Dust-Tight Seal, Watertight Neoprene Sealing Glands for Reliable Seal
Body Material
Valox 357 Housing and Epoxy Painted Aluminum Shroud
Body Material - Pin and Sleeve
Valox 357 Housing and Aluminum Shroud
Compatible with Series
UL 1686 Class 1 Insulgrip(R)
Reverse Service
No
Minimum Operating Temperature
-40 Degrees F
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Housing Material Grade
Valox 357
Shrouded
Yes
Housing Material
Thermoplastic

Description

Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. What’s more, Hubbell’s watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isn’t the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices.
• Watertight neoprene sealing glands for reliable seal
• Spring-Loaded, gasketed cover for dust-tight seal
• Pin chamber confines arcing within the interior chamber
