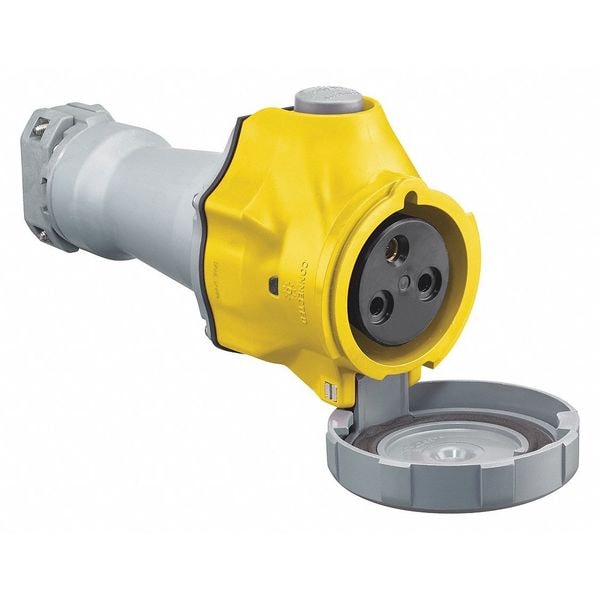

Watertight Pin & Sleeve Connector, 32 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

The HUBBELL Pin and Sleeve Connector, 32A, is a switch-rated device intended for use in industrial electrical applications requiring a disconnecting means. It features a compact design compatible with IEC 60309-2 pin and sleeve devices and includes constructed with materials rated for use in wet locations. The connector is rated for operation at 32 amps, 125V AC single-phase, and up to 2 hp; compatible with motor and branch circuit installations within these parameters.

Key Features of the HUBBELL Pin & Sleeve Connector:

• Current/Voltage Rating: Rated for 32 A at 125V AC single-phase operation


• Switch-Rated: Listed as a disconnecting means per applicable standards


• Housing Material: Valox 357 (PBT) housing


• Contact Material: Beryllium copper contacts


• NEMA/IP Ratings: NEMA Type 4X enclosure; IP68/IP69K rated watertight protection


• Operating Temperature Range: -40°C to +75°C


• Cable Accommodation: Accepts wire sizes from 12 AWG to 8 AWG; cable diameter range from 0.5 in to 1.25 in


• Power Indicating Light: Power indicating LEDs included


• Connection Orientation/Type: Straight connection using screw terminals; spring-loaded cap included


• Grounding Style: IEC grounded configuration


• Standards Compliance: CSA Certified LR280C, UL Classified to IEC standards (60309-1/-2), UL E146033 listed
