Shop HUBBELL WIRING DEVICE-KELLEMS

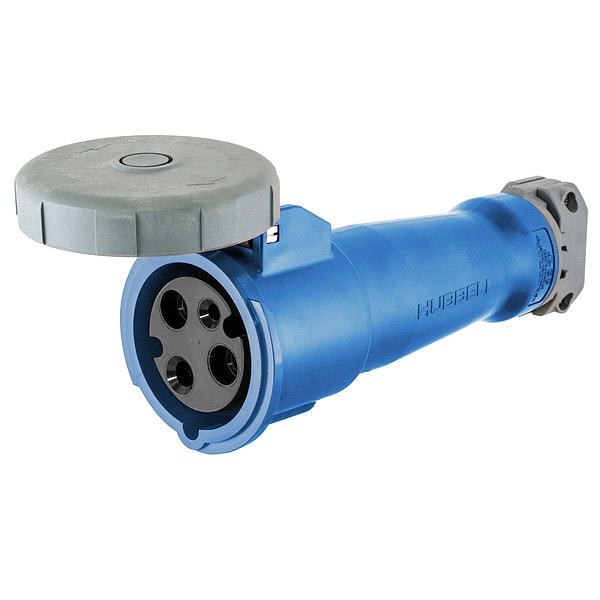

Watertight Pin & Sleeve Connector, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL360C6W

  • Zoro # G3027701

product price:
$
506.25
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL360C6W
Zoro #
G3027701
UPC #
783585403786
Country of Origin
United States
Item
Watertight Pin & Sleeve Connector
Current Rating
60 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Switch Rated
No
Body Material - Pin and Sleeve
Zytel 801 Nylon
Application
High Ampacity Connections
Horsepower Rating
3 hp
Housing Material
PBT
Market
Industrial
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Compatible with Series
HBL Heavy Duty
Housing Material Grade
Zytel 801
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
Material - Mounting Hardware
Cord Mounted
Series
HBL Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard Service
Environmental Conditions
Watertight
Conductor Range
#8 AWG to #2 AWG
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Number Of Conductors
3-Wire Grounding
Connection Type
Screw Terminals
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 60A and 250V AC, intended for use in industrial environments. Rated for 60A and 250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with housing materials selected to offer impact and moisture resistance. It accommodates conductor sizes from #8 AWG to #2 AWG with pressure terminal screws to facilitate wire connection. The unit meets CSA and UL standards (IEC 60309-1/2) and is suitable for applications requiring power connection in challenging environments.


Key Features of the HUBBELL IEC Pin & Sleeve Connector:

  • Current/Voltage Rating: Rated for 60A at 250V AC single-phase operation

  • Ingress Protection: Rated IP68/IP69K per applicable standards; includes a gasketed cover that closes automatically

  • Material: Housing constructed from Zytel 801 nylon; insulated body contributes to product durability

  • Cord Grip: External cord grip designed to provide strain relief on conductors

  • Wire Accommodation: Accepts wire sizes from #8 AWG to #2 AWG; screw terminal connections

  • Temperature Range: Operates continuously between -40°C to +75°C (without impact)

  • Identification: Color-coded blue housing aids in voltage identification per IEC standards

  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed

  • Design Attributes: Shrouded contacts, spring-loaded cap, grounded configuration (3-wire grounding), straight connection orientation
