Shop HUBBELL WIRING DEVICE-KELLEMS

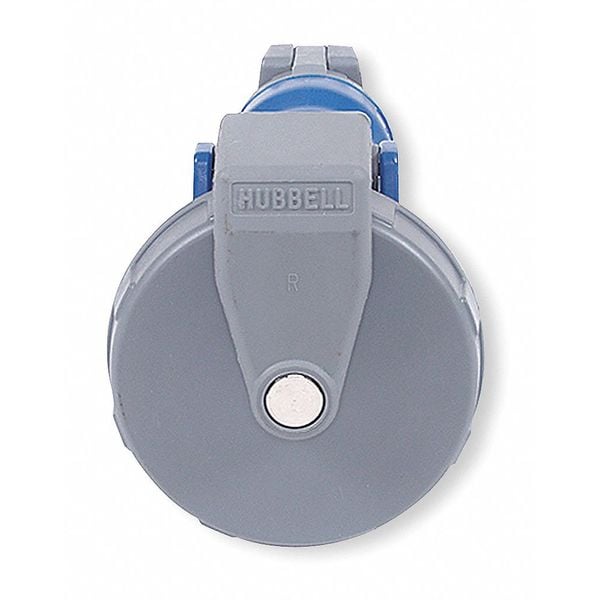

Watertight Pin & Sleeve Connector, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL460C9W
  • Zoro # G2391453
product price:
$
579.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL460C9W
Zoro #
G2391453
UPC #
783585404837
Country of Origin
United States
Item
Watertight Pin & Sleeve Connector
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
HP
5 hp
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Switch Rated
No
Housing Material Grade
Zytel 801
Compatible with Series
HBL Heavy Duty
Reverse Service
No
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Housing Material
PBT
Maximum Operating Temperature
75 Degrees C
Shrouded
Yes
Power Indicating Light
No
Horsepower Rating
7 1/2 hp
Series
HBL Heavy Duty
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for use in industrial settings where high-capacity power connections are specified. Rated for 60A and 250V AC in three-phase systems, this connector features a rugged Zytel 801 nylon body with an insulated non-metallic housing. It supports cable diameters from 0.5 to 1.45 inches and accommodates wire sizes from 8 AWG to 2 AWG using screw terminals.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 60 amps at 250V AC; refer to application requirements to determine suitability.

  • Watertight Construction: IP68/IP69K rated with NEMA Type 4X enclosure.

  • Material: Body constructed from Zytel 801 nylon; housing made of PBT with V-0 flammability rating per UL94.

  • Cable Accommodation: Accepts cables between 0.5 in and 1.45 in diameter; supports wire sizes from #8 AWG up to #2 AWG.

  • Connection Orientation: Straight connection design with shrouded contacts for added protection.

  • Grounding Style: IEC grounding configuration; grounded device with four wires (three poles).

  • Cord Grip & Cover: External cord grip is included for strain relief; spring-loaded self-closing gasketed cover is present on the device.

  • Color Coding & Identification: Blue color-coded housing as part of the HBL Heavy Duty series.

  • Temperature Range: Operates within -40°C to +75°C temperature range.

  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC standards (60309-1/60309-2), UL E146033 listed product.
