Shop HUBBELL WIRING DEVICE-KELLEMS

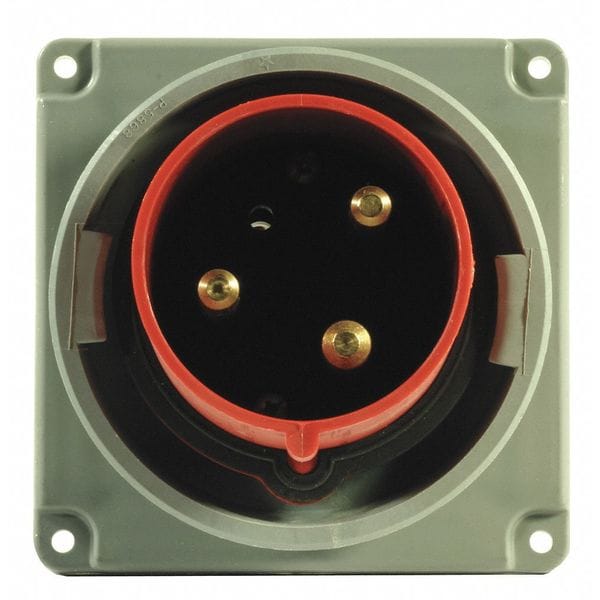

Watertight Pin & Sleeve Inlet, 20 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

  • Mfr # HBL320B7W

  • Zoro # G7235487

product price:  $149.85
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL320B7W
Zoro #
G7235487
UPC #
783585403298
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Face Diameter
1.85 in
Maximum Wire Size
10 AWG
Flange Diameter
2.72 in
Cord Size
14 to 10 AWG
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Moisture Resistant, Watertight
Features
Thermoset Polyester Contact Carrier
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Material
Thermoplastic
Insulation Material
Thermoplastic
Horsepower Rating
5 hp
Shrouded
Yes
Flange Type
Flanged
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Housing Material
Polybutylene Terephthalate
Compatible with Series
HBL Heavy Duty
Market
Industrial
Housing Material Grade
Zytel 101
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
Screw Material
300 Stainless Steel
Service
Standard
Flange Material
Zytel 101 Nylon
Gasket Material
Neoprene
Product Type
Watertight IEC Device
Temp. Rise
30°C
Weight
0.7 lb
Flammability
UL 94 HB or Better
Operating Temp.
-40 to 75°C
Switch Rated
Yes
Application
High Ampacity Watertight Connections
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1. Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Material - Mounting Hardware
Screw Mounting
Wattage
9600
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Series
HBL Heavy Duty
Connection Type
Screw Terminals
Number of Pins
3
Connection Orientation
Straight
UL 94 Flammability Rating
V-0
Number of Gangs
1
Reverse Service
No
Grounding
Grounded

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 20A and 480V AC, suitable for use in industrial environments. Rated for 20A and 480V AC, this device features a rugged construction with pressure terminal screws for secure connectivity. It is compatible with the HBL Heavy Duty series and meets multiple industry standards including CSA, UL, and IEC 60309-1/2. The unit provides reliable performance in demanding conditions where moisture resistance and durability are required.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Application: Rated for 20A, 480V AC applications requiring IP67 ingress protection

  • Current/Voltage Rating: 20A, 480V AC single phase

  • Ingress Protection: IP67 rated (see standard definition)

  • Body Material: Zytel 101 nylon; Housing Material Grade: Zytel 101

  • Cord Size Compatibility: Accepts #14 AWG to #10 AWG wire sizes

  • Connectivity: Pressure terminal screws with screw mounting hardware

  • Contact Carrier Feature: Thermoset polyester contact carrier as specified by manufacturer

  • Temperature Range: Operates from -40°C to +75°C continuous (without impact)

  • Flammability Rating: UL 94 V-0 or better; Construction per manufacturer’s specifications; see ratings above.

  • Circuit Configuration: Grounded, shrouded design; two poles, three wires (IEC grounding style)

  • Certain Performance Ratings: Certified current interrupting at full rated current; dielectric strength of 3000V AC; horsepower rating of up to 5 hp

  • Standards Compliance: CSA certified File LR280C, UL Listed File E146032, classified per IEC standards
