  6. Watertight Pin & Sleeve Plug, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange

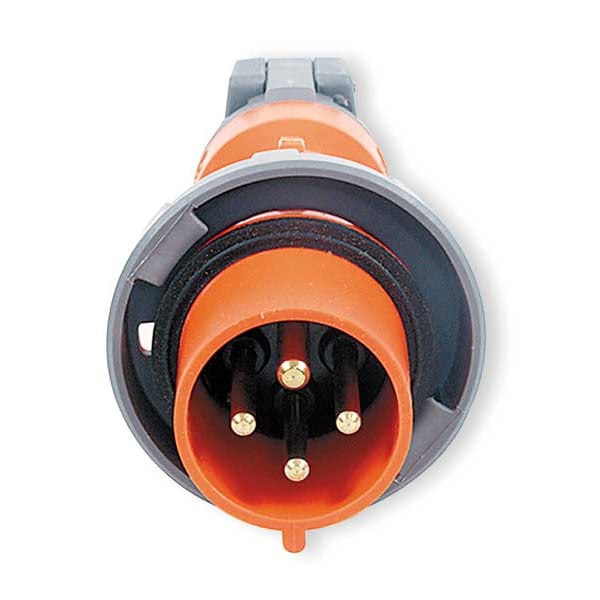

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange HBL4100P12W - main

Watertight Pin & Sleeve Plug, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange

  • Mfr # HBL4100P12W

  • Zoro # G2452283

product price:  $606.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4100P12W
Zoro #
G2452283
UPC #
783585404028
Country of Origin
United States

Dimensions

Overall Length
12.63 in
Face Diameter
3.21 in
Minimum Wire Size
3 AWG
For Minimum Cable Diameter
1.065 in
Maximum Wire Size
1/0 AWG
For Maximum Cable Diameter
1.065 in

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Orange
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 801 Nylon
Grounding Style
IEC
Features
Gasketed Sealing Ring Provides Watertight Seal
Body Material
Zytel 801 Nylon
Switch Rated
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
10 hp
Shrouded
Yes
Housing Material
Non-Metallic
Reverse Service
No
Housing Material Grade
Zytel 801
Power Indicating Light
No
NEMA Enclosure Rating
4X
Hub Style
Standard

Description

The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector suitable for industrial and commercial environments. Rated for 100A and 125/250V AC, this plug features a rugged non-metallic housing made from Zytel 801 nylon, with impact-resistant and moisture-resistant housing. It is grounded with an IEC grounding style, accommodates wire sizes from 3 AWG to 1/0 AWG, and includes a gasketed sealing ring.


Key Features of the HUBBELL IEC Pin & Sleeve Plug:

  • Current Rating: 100 A

  • Voltage Rating: 125/250V AC

  • Number of Poles/Wires: 3 poles, 4 wires

  • Body/Housing Material: Zytel 801 Nylon (non-metallic)

  • Operating Temperature Range: -40°C to +75°C

  • NEMA Enclosure Rating: Type 4X; IP67 rated

  • Cable Accommodation: Accepts cable diameters up to 1.065 in; accommodates wire sizes from 3 AWG to 1/0 AWG

  • Wire Connection Type: Screw terminals with straight connection orientation

  • Horsepower Rating: Rated at 10 hp maximum

  • Resistance Properties: Impact-resistant, moisture-resistant, watertight construction; shrouded design

  • Standards Compliance: CSA Certified C22.2 No.182.1; UL E146032; UL IEC60309-1 listed products
